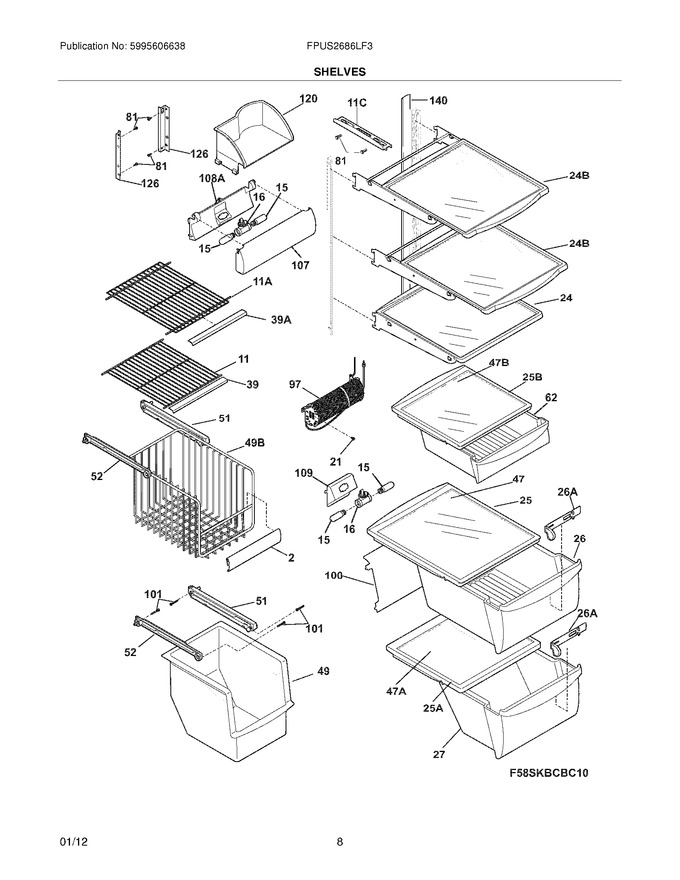

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


22 - Wiring Schematic


23 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510607		Trim-basket		Appelez-nous	-
11	241657602		Shelf,flip Up ,wire				$ 86.45
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	240355270		Shelf-``spill-safe``,fixed   (Replaces: 240355256)				$ 170.63
25	240599301		Cover-crisper Pan,upper			Immediately	$ 94.38
26	240351061		Pan-crisper,upper			Immediately	$ 110.01
27	240351240		Pan-crisper,lower				$ 203.45
39	240430706		Trim-shelf,11.21`` ,front				$ 81.85
47	240350649		Insert-pan Cover,glass			Immediately	$ 123.89
49	240564401		Basket-sliding			Immediately	$ 158.90
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
62	241969607		Pan-meat   (Replaces: 241969601)				$ 204.47
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	242220510		Water Tank   (Replaces: 241532007)				$ 119.78
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
107	241753601		Shield-light,upper				$ 30.91
109	241513202		Base-crisper Light Socket				$ 65.21
120	240342901		Shelf-ice Cream				$ 39.69
126	241674401		Channel,auger Mtg ,lh				$ 47.48
126	241674402		Channel,auger Mtg ,rh				$ 43.24
140	241812502		Channel,wtr Tube Cover				$ 76.97
11A	241657514		Shelf,fixed ,upper ,freezer   (Replaces: 241657504)		Appelez-nous	-
11C	240324101		Shelf-pizza				$ 59.91
24B	240350150		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350136)				$ 176.70
25A	240350903		Cover-crisper Pan,lower			Immediately	$ 91.99
25B	241969501		Cover-meat Pan			Immediately	$ 96.21
26A	240362201		Control-humidity				$ 69.46
39A	240430702		Trim-shelf,12.39`` ,front				$ 21.89
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
47B	240443384		Insert-pan Cover,glass				$ 151.68
49B	240530504		Basket-sliding,upper ,full				$ 207.81
F108	241753701		Housing-light,upper ,fresh Food				$ 22.58
F15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
F16	241622802		Socket-light,frz Light				$ 65.93
FNI	241987601		Harness-wiring				$ 113.76
NI	240349801		Clip-slide,pan-crisper				$ 20.48
NI	5304535377		Tape,aluminum ,3`` Wide   (Replaces: 240570304)				$ 31.36
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	241595202		Clip-slide,pan-crisper				$ 18.20
NI	241868101		Air Guide		Appelez-nous	-
NI	242028552		Energy Guide		Appelez-nous	-
