SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts

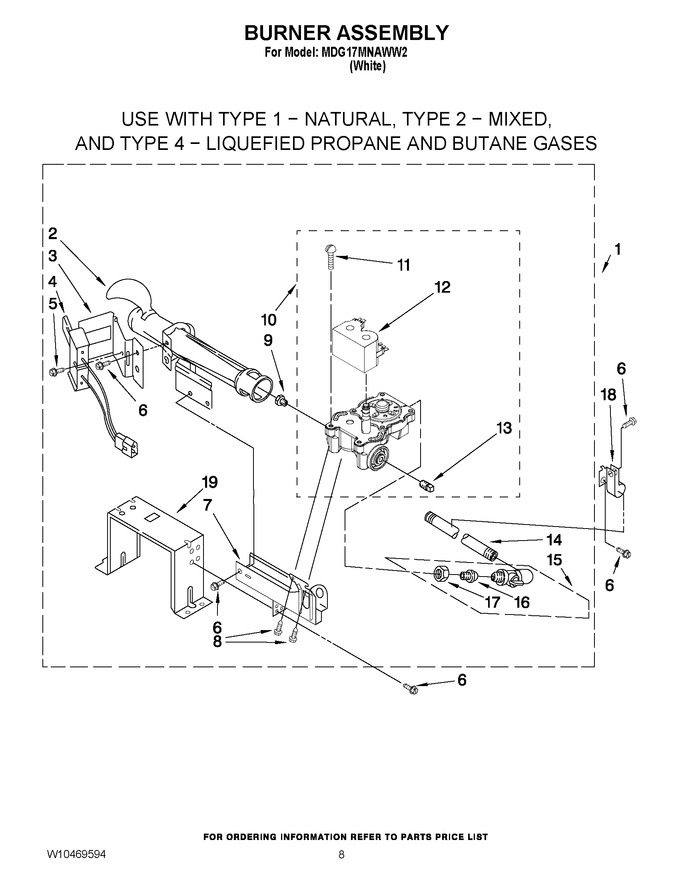

04 - Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11676916		Burner Assembly 60 Hz. (type 1, 2 & 3) (copreci)   (Replaces: W10400668)				$ 226.06
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 161.89
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 23.33
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
5	WPW10366705		Screw & Washer (8-32 X 5/8)   (Replaces: 3393909)				$ 6.75
6	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
7	3389871		Base, Burner				$ 71.36
8	WP693995		Screw, 10-16 X 1/2   (Replaces: 3387057)			Immediately	$ 6.47
9	WP234868		Orifice, Burner (type 2)   (Replaces: 234868)				$ 31.37
9	234870		Orifice, Burner (type 1)				$ 110.82
10	W11676916		Valve Gas 60 Hz. (complete)   (Replaces: W10299939)				$ 226.06
11	326049536		Screw, Coil		Appelez-nous	-
12	WPW10328463		Coil, 60 Hz.   (Replaces: W10328463)			Immediately	$ 71.12
13	W10295523		Plug, Pipe		Appelez-nous	-
14	W10110395		Pipe, Gas Supply		Appelez-nous	-
15	697441		Valve & Union Shut-off		Appelez-nous	-
16	3393767		Pipe, Tail				$ 123.97
17	233076		Nut, Compression				$ 43.19
18	3387561		Clamp, Pipe		Appelez-nous	-
19	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
NI	W10436933		Conversion Kit (type 1 And 2) To Type (4) L.p.g.   (Replaces: W10436933RE)				$ 54.23

    View Diagram in Separate Window       Print Part List
