SELECT A DIAGRAM

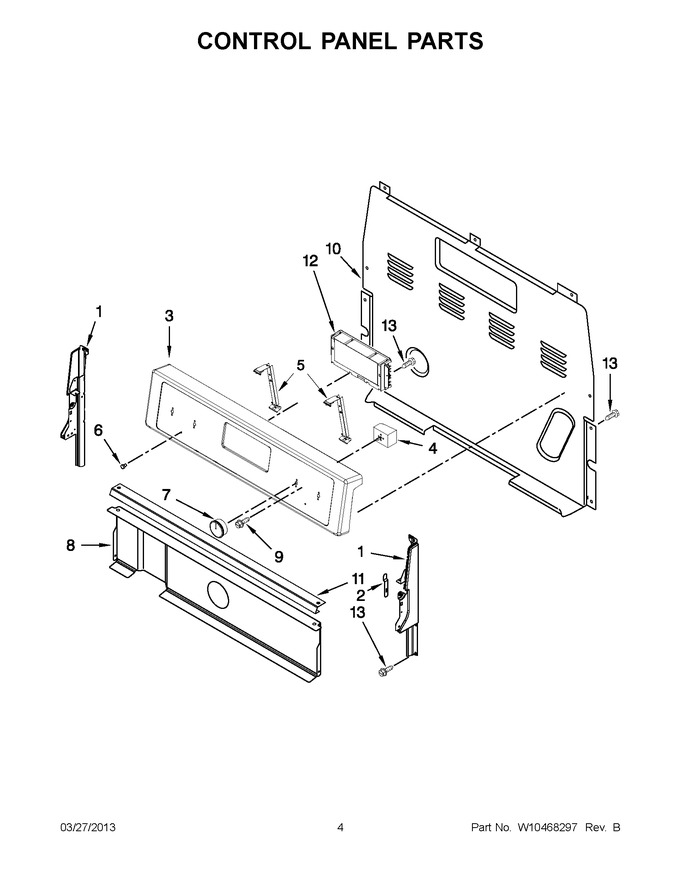

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer And Broiler Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 36.39
1	W11219665		Endcap (black (right Hand))   (Replaces: W10184438)				$ 36.40
1	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 52.14
1	W11219664		Endcap (black (left Hand))   (Replaces: W10184437)				$ 131.85
2	3196200		Clip, Spring				$ 8.96
3	W10339375		Panel, Backguard (stainless)				$ 93.64
3	W10370090		Panel, Backguard (black)				$ 145.30
3	W10370092		Panel, Backguard (white)		Appelez-nous	-
4	5500-287		Switch, Infinite (right Front & Left Rear)   (Replaces: 3148951)			Immediately	$ 47.15
4	5500-287		Switch, Infinite (right Rear)   (Replaces: 3148953)			Immediately	$ 47.15
4	WPW10167742		Switch, Infinite (single, (3000w) (left Front))   (Replaces: W10167742)			Immediately	$ 106.38
5	W11230932		Bracket, Control   (Replaces: W10324410)			Immediately	$ 72.69
6	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
7	WPW10490037		Knob (white)   (Replaces: W10490037)			Immediately	$ 6.47
7	WPW10490038		Knob (black)   (Replaces: W10490038)				$ 18.46
8	W10134247		Shield, Heat			Immediately	$ 307.56
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.47
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 187.75
11	W10525121		Bracket, Console Mounting				$ 84.73
12	W10813969		Control, Range (lcc190) (white)   (Replaces: W10348618)				$ 416.48
12	W10813969		Control, Range (lcc190) (black)   (Replaces: W10348617)				$ 416.48
12	W10424885		Control, Range (lcc190) (stainless)				$ 444.43
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
