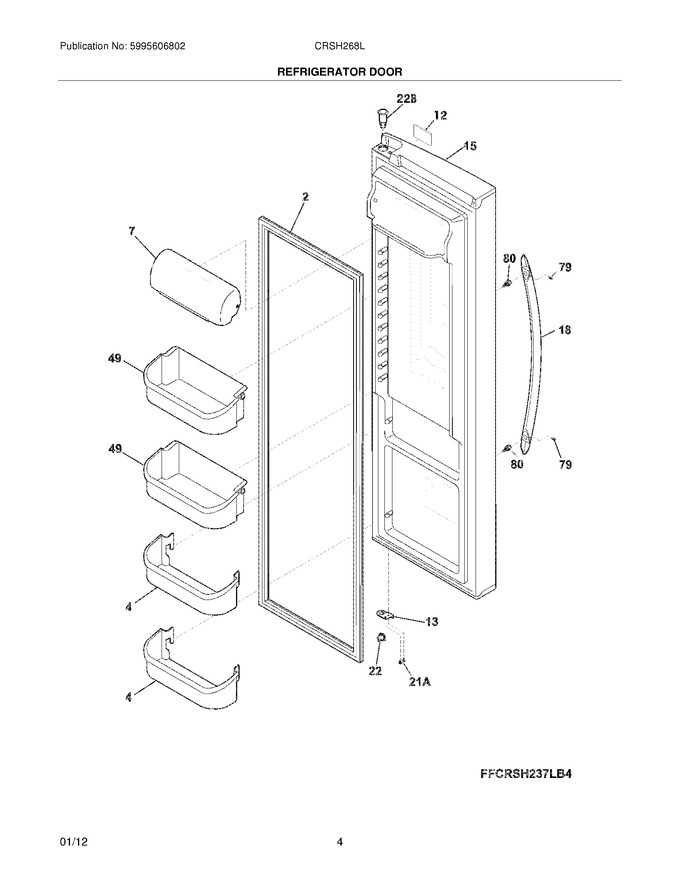

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240323001 | Bin-door,pseudo ,bottom |
|
Immediately | $ 42.81 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 12 | 242115801 | Nameplate |
|
- | |||||
| 13 | 241942603 | Door Stop,black ,ref |
|
$ 20.56 | |||||
| 15 | 242038883 | Door-refr,stainless Steel ,complete Assy |
|
- | |||||
| 18 | 242152701 | Handle-door,stainless Steel ,refr/frz ,with Set Screw |
|
- | |||||
| 22 | 241990301 | Bearing-hinge,gray |
|
$ 7.09 | |||||
| 49 | 240356416 | Bin-door,gallon ,refr |
|
- | |||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760404 | Bearing,hinge ,top |
|
$ 12.76 | |||||
| F2 | 241786005 | Refrigerator Door Gasket, Grey, Magnetic |
|
Immediately | $ 225.62 | ||||
| NI | 241701902 | Screwdriver,hex ,3/32`` ,ball Driver |
|
$ 19.85 | |||||
| NI | 241601002 | Wrench,allen |
|
- |
