01 - Cover

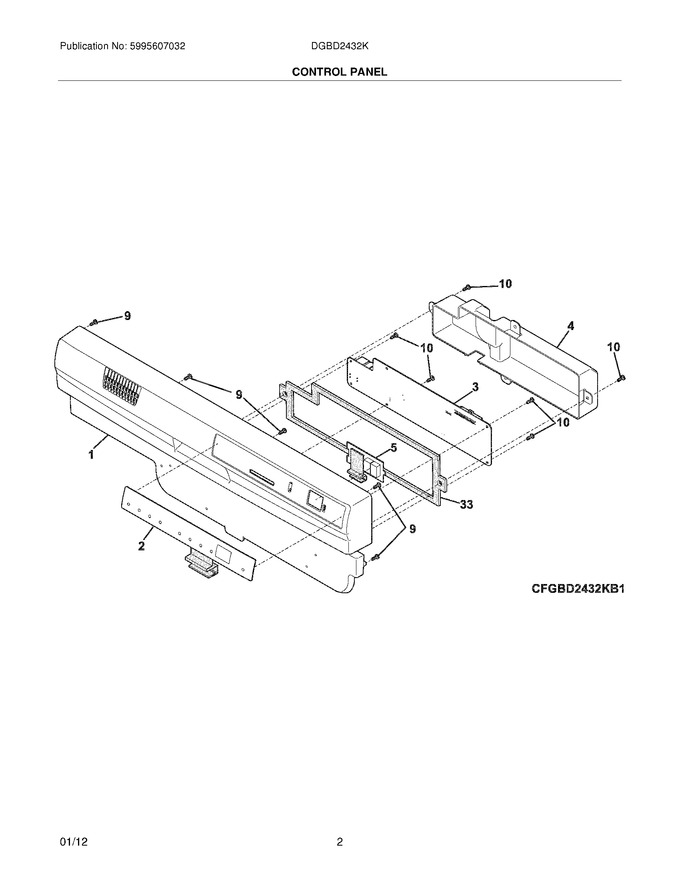

03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Frame
13 - Racks
14 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154752603 | Console Assembly,w/pocket Handle ,black |
|
- | |||||
| 4 | 154718801 | Cover,control |
|
$ 35.44 | |||||
| 9 | 154783101 | Screw,plt ,8-10 |
|
Immediately | $ 7.09 | ||||
| 10 | 154294701 | Screw,no.7 Plas .375 ,(6) ,disp. Assy. |
|
$ 9.22 | |||||
| 33 | 154478901 | Gasket,cover |
|
$ 61.66 | |||||
| F2 | 154778003 | Insert,control Panel ,black |
|
$ 152.25 | |||||
| F3 | 807024601 | Control (Replaces: 154806402) |
|
$ 286.28 | |||||
| F5 | 154734301 | Display Board,7 Segment |
|
$ 96.65 | |||||
| FNI | 154851201 | Harness,wiring ,main |
|
$ 126.89 | |||||
| NI | 808326801 | Screw,ground ,no.8-18 X .375 (Replaces: 154409401) |
|
$ 2.84 | |||||
| NI | 154849244 | Energy Guide |
|
- |
