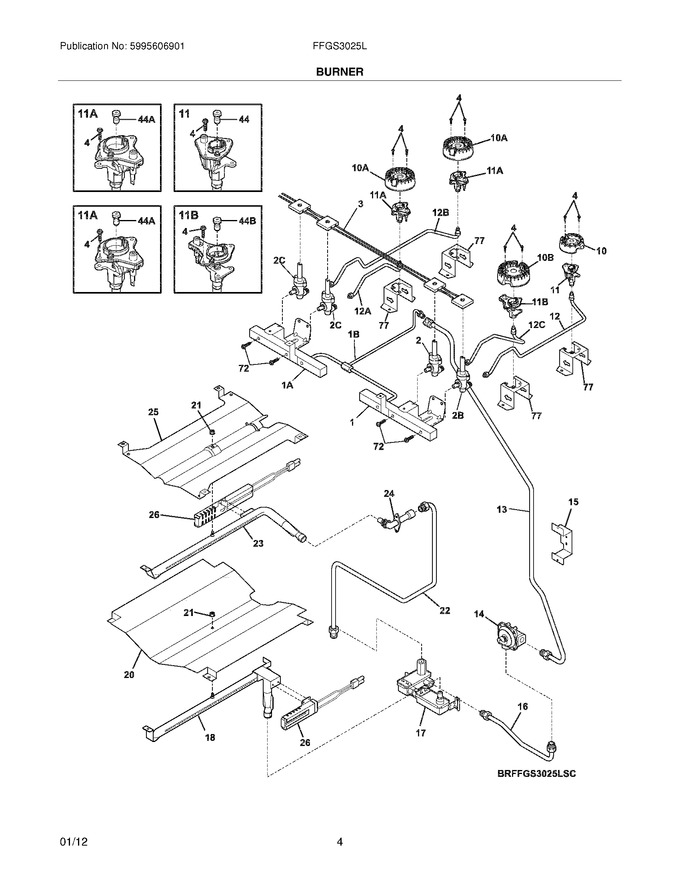

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318305600		Manifold,right Side				$ 129.70
4	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
15	318262810		Bracket,regulator		Appelez-nous	-
20	318290400		Baffle,bake Burner				$ 120.65
21	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
25	316401301		Baffle,broil Burner				$ 173.57
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
77	318920300		Bracket,burner Mtg ,(4)		Appelez-nous	-
1A	318305601		Manifold,left Side				$ 105.42
F10	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10A	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
F11	316540800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 11.20
F11A	316540700		Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder				$ 11.15
F11B	316543206		Ignitor/orifice Assy.,top Burner ,14k ,w/holder				$ 146.71
F12	318916801		Tube,burner Supply ,rh Rear				$ 39.69
F12A	318916501		Tube,burner Supply ,lh Front		Appelez-nous	-
F12B	318916601		Tube,burner Supply ,lh Rear		Appelez-nous	-
F12C	318916701		Tube,burner Supply ,rh Front				$ 47.03
F13	318305110		Tube,regulator ,to Manifold				$ 105.84
F14	5304521339		Regulator,pressure   (Replaces: 316416700)			Immediately	$ 105.42
F16	318289500		Tube,regulator Valve				$ 75.84
F17	316404901		Valve,safety				$ 365.72
F18	318292200		Burner,oven ,18000				$ 109.35
F1B	318305410		Tube,manifold ,3/8 ,interconnect				$ 294.13
F2	318233930		Valve,top Burner ,14000 Btu				$ 118.32
F22	318305203		Tube,broil Supply		Appelez-nous	-
F23	318292300		Burner,broil ,14000				$ 99.75
F24	316409703		Elbow,mixer				$ 138.70
F26	5303935066		Ignitor,oven Burner   (Replaces: 318177710)			Immediately	$ 59.58
F2B	318233900		Valve,top Burner ,5000 Btu				$ 161.53
F2C	318233910		Valve,burner ,front ,bridge				$ 132.56
F3	318232659		Wiring Harness,w/igntr Switch				$ 100.59
F44	316527504		Orifice,burner ,5k				$ 22.68
F44A	316527500		Orifice,top Burner ,9.5k				$ 21.40
F44B	316527513		Orifice,top Burner ,14k				$ 22.05
FNI	318268600		Harness,wiring ,valve				$ 56.32
FNI	GRLP4		Conversion Kit,lp   (Replaces: 318565404)			Immediately	$ 56.70
FNI	318199776		Wiring Harness,ignitor				$ 54.60
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5303300195		Screw,10-32 X 0.375 ,(2)		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304463705		Screw,8-18 X 1/2 ,(4)		Appelez-nous	-
