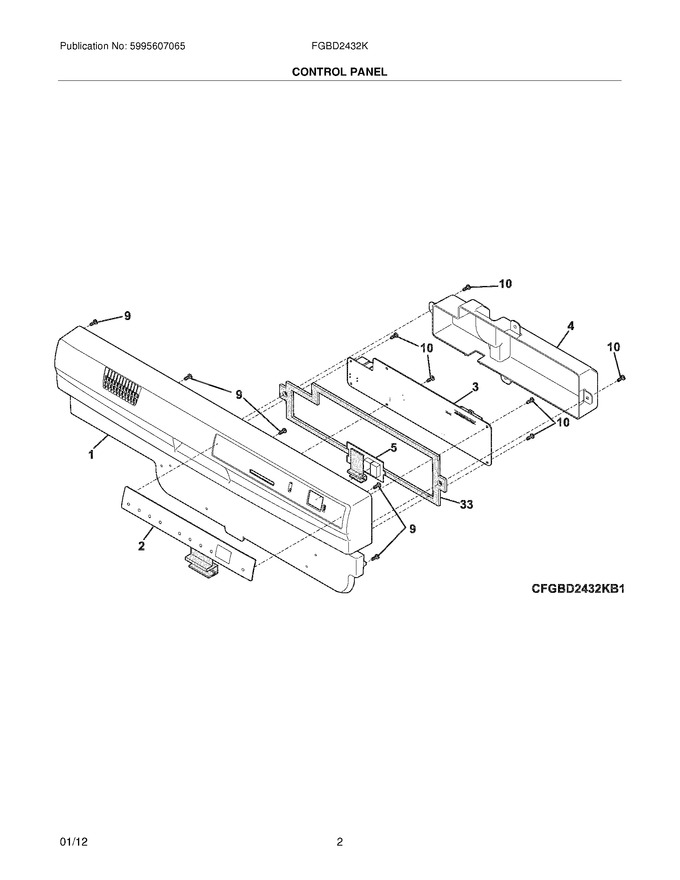

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154752603		Console Assembly,w/pocket Handle ,black		Appelez-nous	-
4	154718801		Cover,control				$ 35.44
9	154783101		Screw,plt ,8-10			Immediately	$ 7.09
10	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
33	154478901		Gasket,cover				$ 61.66
F2	154778003		Insert,control Panel ,black				$ 152.25
F3	807024601		Control   (Replaces: 154806402)				$ 286.28
F5	154734301		Display Board,7 Segment				$ 96.65
FNI	154851201		Harness,wiring ,main				$ 126.89
NI	154849244		Energy Guide		Appelez-nous	-
NI	808326801		Screw,ground ,no.8-18 X .375   (Replaces: 154409401)				$ 2.84

    View Diagram in Separate Window       Print Part List
