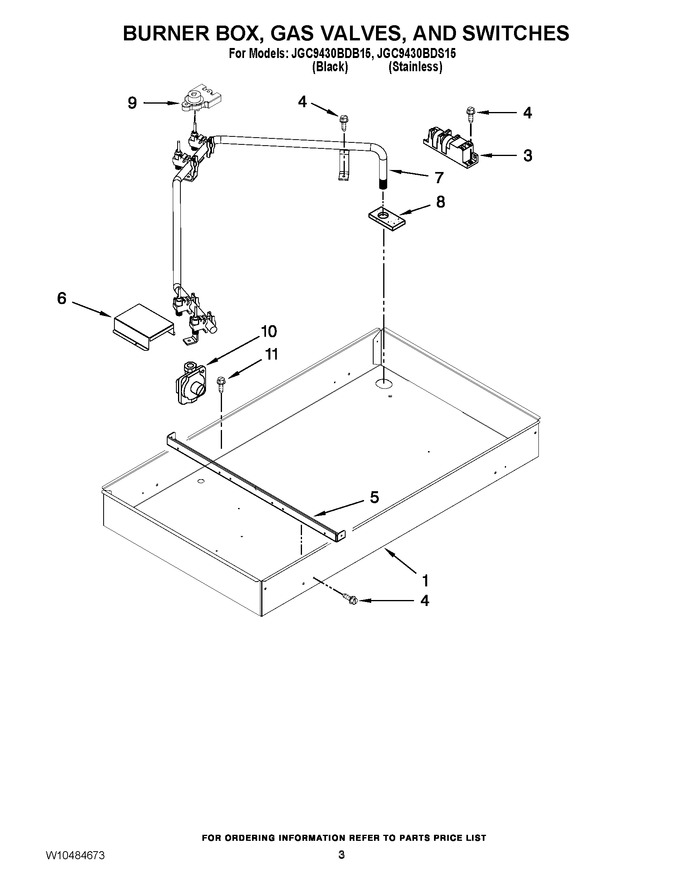

02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011F526-51 | Burner Box |
|
- | |||||
| 3 | WPW10475147 | Spark Module (Replaces: 7431P038-60) |
|
Immediately | $ 214.42 | ||||
| 4 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 5 | 3801F889-51 | Bracket, Orifice Holder (2) |
|
- | |||||
| 6 | 4005F816-51 | Cover, Spark Module |
|
$ 41.45 | |||||
| 7 | 7513P305-60 | Pipe, Manifold (includes Valves) |
|
$ 146.98 | |||||
| 8 | WP74001380 | Seal, Manifold Pipe Inlet (Replaces: 7208P024-60) |
|
$ 58.91 | |||||
| 9 | W10173478 | Harness & Switches |
|
$ 167.40 | |||||
| 10 | W11087445 | Regulator, Pressure (center) Orifice Holder (Replaces: 7510P093-60) |
|
Immediately | $ 177.34 | ||||
| 11 | WP71001171 | Screw, Ground (Replaces: 7101P460-60) |
|
$ 6.26 |
