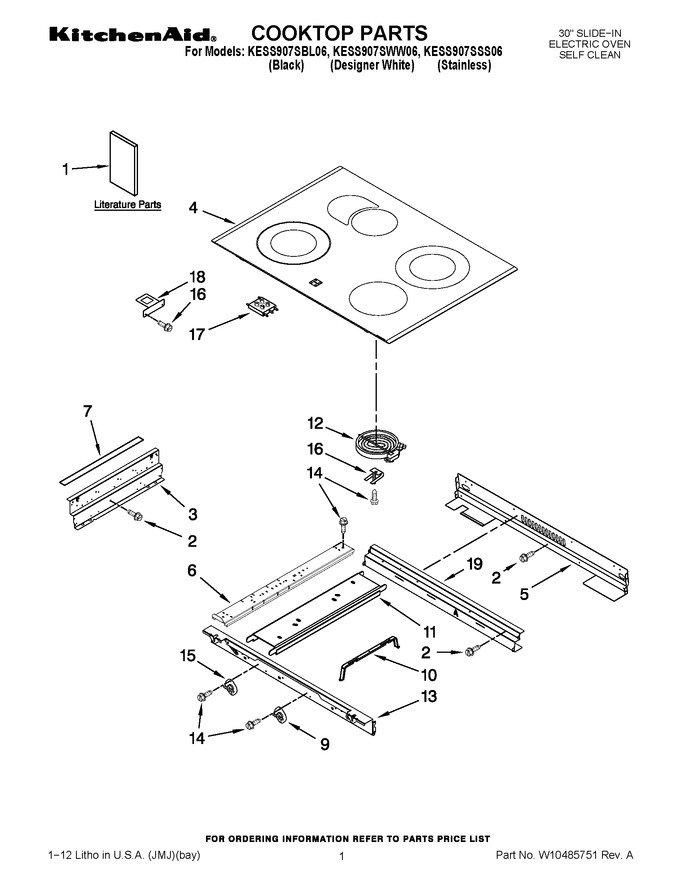

01 - Cooktop Parts


02 - Oven Parts


03 - Door Parts


04 - Drawer Parts


05 - Control Panel Parts


06 - Internal Oven Parts


07 - Top Venting Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10440541		Installation Instructions (english)		Appelez-nous	-
1	W10075750		Installation Instructions (bi-lingual)		Appelez-nous	-
1	W10449874		Use & Care Guide		Appelez-nous	-
1	W10220962		Tech Sheet		Appelez-nous	-
1	9763467		Easy Set Guide		Appelez-nous	-
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
2	WP486754		Screw   (Replaces: 246119)				$ 6.75
3	9761422		Frame, Cooktop				$ 67.87
4	W10110269		Cooktop (white)		Appelez-nous	-
4	W10297306		Cooktop (black/stainless)   (Replaces: W10110271)				$ 911.43
5	9761724		Cover, Cooktop Rear				$ 35.73
6	9763517		Rail, Element				$ 62.80
7	W10076030		Gasket				$ 78.51
9	WP9759944		Thermostat   (Replaces: 9759944)			Immediately	$ 121.57
10	9756821		Support, Wiring		Appelez-nous	-
11	9757825		Rail, Element Center		Appelez-nous	-
12	WPW10275049		Element, Surface (lf/rr (2500/1200w))   (Replaces: W10275049)			Immediately	$ 282.81
12	WP8273993		Element, Surface (rf (1800w))   (Replaces: 8273993)			Immediately	$ 220.06
12	W10248257		Element, Surface (lr (1800/1000w))				$ 150.74
13	9761423		Frame, Cooktop Front				$ 43.33
14	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
15	341196		Thermostat				$ 33.17
16	9759094		Spring,locator				$ 6.34
17	8523739		Indicator Light, Hot Surface				$ 120.71
18	9758799		Bracket, Indicator Light				$ 47.83
19	9761768		Frame, Cooktop Rear				$ 73.35

    View Diagram in Separate Window       Print Part List
