SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram

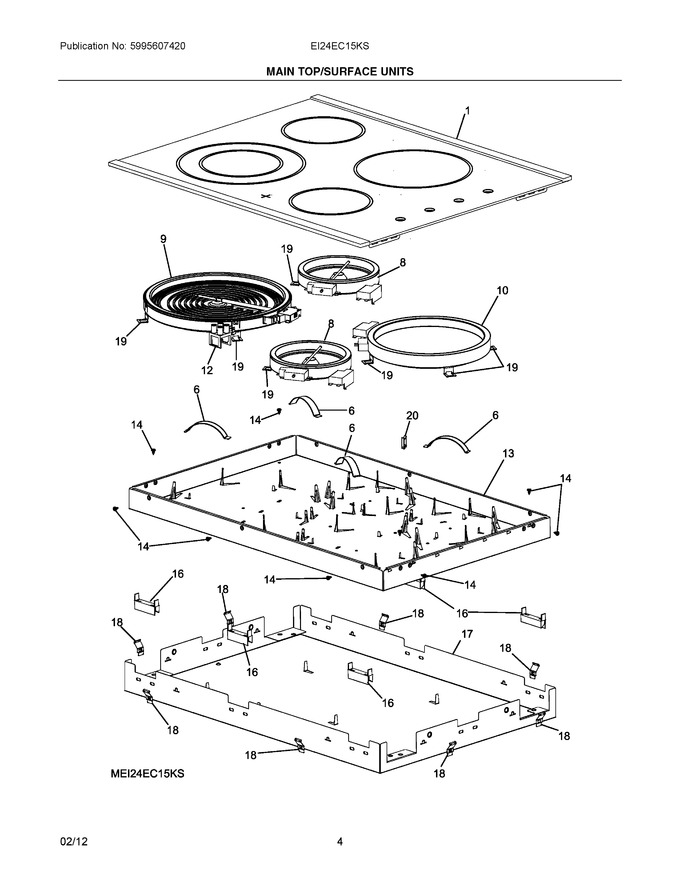

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	305521965		Maintop Assembly, Glass/frame, Black/stainless   (Replaces: 305543513)				$ 689.19
6	387372900		Spring, Surface Element				$ 15.17
8	140283001026		Element, Surface, 6", 1200w   (Replaces: 374063522)			Immediately	$ 73.17
9	5304535369		Element, Surface, 5"/8", 750w/2200w   (Replaces: 374064021)				$ 144.59
10	374063621		Element, Surface, 7", 1800w				$ 104.06
12	387812004		Light Assembly, Indicator, Hot Surface				$ 50.32
13	305554400		Box, Inner		Appelez-nous	-
14	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
16	387627600		Spacer, Burner Box, Plastic				$ 12.71
17	305554500		Box, Outer		Appelez-nous	-
18	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
19	387683300		Bracket, Surface Element			Immediately	$ 13.42
20	387727700		Retainer, Wiring		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	5304537041		Box & Wires Assy   (Replaces: 305500705)			Immediately	$ 99.72
NI	305554600		Harness, Wiring, Main				$ 31.05
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIA	305376101		Screw, Bracket, Surface Element		Appelez-nous	-
NIA	387627700		Bracket, Retainer, Cooktop				$ 24.10
NIB	131202300		Screw   (Replaces: 305376102)			Immediately	$ 13.46
NIC	305309606		Screw				$ 11.34

    View Diagram in Separate Window       Print Part List
