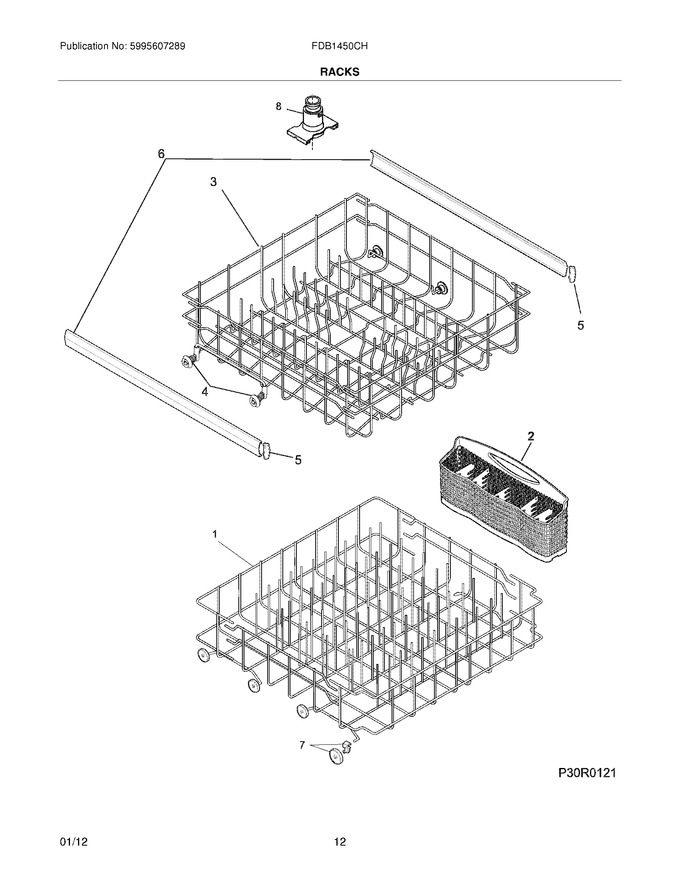

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535379 | Rack Assy,lower ,w/rollers (Replaces: 154336020) |
|
Immediately | $ 124.78 | ||||
| 2 | 5304535382 | Basket,silverware ,white (Replaces: 154556101) |
|
Immediately | $ 25.43 | ||||
| 3 | 5304535380 | Rack Assy-upper (Replaces: 154331502) |
|
Immediately | $ 150.71 | ||||
| 4 | 154522902 | Wheel & Bushing Assy,upper Rack ,(8) (Replaces: 154522901) |
|
$ 39.54 | |||||
| 5 | 5300809927 | Cap,slide ,(4) |
|
Immediately | $ 3.69 | ||||
| 6 | 154597801 | Slide,rack ,upper ,(2) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,lower Rack (Replaces: 154174502) |
|
Immediately | $ 12.75 | ||||
| 8 | 154728001 | Base,funnel |
|
$ 27.03 | |||||
| NI | 154818702 | Nameplate,rack Spacer ,grey |
|
$ 11.29 |
