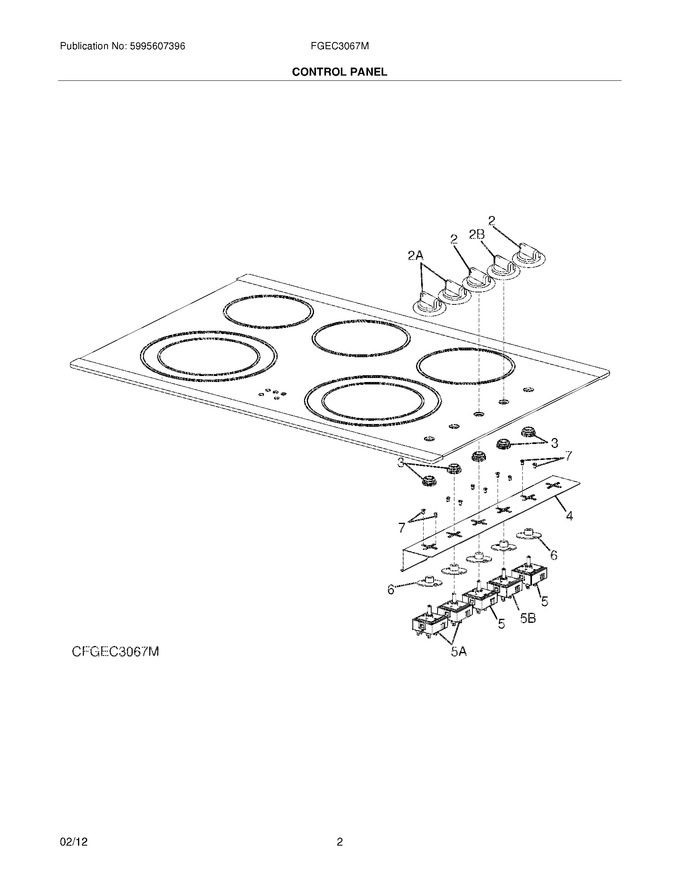

03 - Control Panel
05 - Maintop/surface Units
06 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 318949102 | Knob,control ,stainless ,single |
|
$ 85.10 | |||||
| 3 | 387316100 | Bushing,knob ,sealing |
|
$ 13.46 | |||||
| 4 | 305521800 | Bracket,support ,switch Mtg |
|
- | |||||
| 6 | 318146010 | Bushing,switch |
|
$ 17.16 | |||||
| 7 | 5304536454 | Screw,switch Mtg. ,m4 X 7 (Replaces: 319224001) |
|
$ 2.98 | |||||
| 2A | 316564615 | Knob,control ,stainless ,dual |
|
$ 164.57 | |||||
| 2B | 318949103 | Knob,control ,stainless ,keep Warm |
|
$ 78.65 | |||||
| F5 | 305458900 | Switch,surface Element ,single (Replaces: 305458906) |
|
$ 66.08 | |||||
| F5A | 5304527965 | Switch,surface Element ,dual (Replaces: 305458904) |
|
Immediately | $ 100.56 | ||||
| F5B | 318282401 | Switch,selector ,keep Warm |
|
$ 109.72 | |||||
| NI | 305567100 | Spacer,switch |
|
- |
