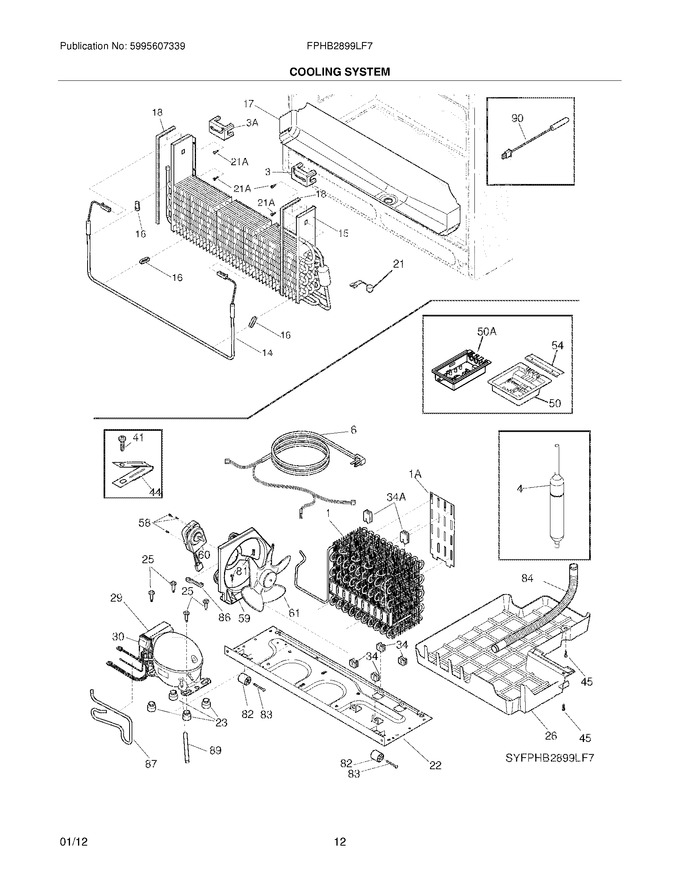

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 241838401 | Block-evap Coil,styrofoam Insul ,rh |
|
$ 20.48 | |||||
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 17 | 241791201 | Trough-drain |
|
$ 109.15 | |||||
| 18 | 241860131 | Gasket,closed Cell (Replaces: 241860101) |
|
Immediately | $ 5.54 | ||||
| 22 | 241602112 | Base-compressor,w/rollers |
|
$ 277.83 | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 42.53 | |||||
| 25 | 240491503 | Screw-compressor Mtg,1/4-28 X 1.16 ,(4) |
|
$ 13.95 | |||||
| 26 | 241920609 | Pan-defrost (Replaces: 241920603) |
|
Immediately | $ 140.45 | ||||
| 34 | 241929901 | Grommet-cond Mtg,(4) |
|
$ 9.22 | |||||
| 41 | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| 44 | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 54 | 241532401 | Channel |
|
$ 30.47 | |||||
| 58 | 240569201 | Screw,8-18 X 0.500 |
|
- | |||||
| 59 | 241946106 | Shroud-cond Fan |
|
$ 45.36 | |||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 21.99 | ||||
| 81 | 240359403 | Screw-fan Shroud,(2) |
|
$ 3.79 | |||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin |
|
Immediately | $ 35.34 | ||||
| 84 | 241830904 | Tube-drain,lower (Replaces: 241830902) |
|
Immediately | $ 23.39 | ||||
| 86 | 240409302 | Spacer-cond Tube,black |
|
$ 67.49 | |||||
| 87 | 241846302 | Tube-suction,jumper |
|
- | |||||
| 89 | 5303918910 | Tube-process (Replaces: 215346900) |
|
- | |||||
| 90 | 240597220 | Sensor,(2) (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 1A | 241987301 | Deflector-air,condenser |
|
$ 26.94 | |||||
| 21A | 218362501 | Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2) |
|
$ 12.05 | |||||
| 34A | 241929902 | Grommet-cond Mtg,(4) |
|
$ 9.22 | |||||
| 3A | 241838402 | Block-evap Coil,styrofoam Insul ,lh |
|
$ 19.85 | |||||
| F1 | 241862903 | Condenser (Replaces: 241862901) |
|
$ 131.12 | |||||
| F14 | 5303918410 | Defrost Heater Kit,28` |
|
Immediately | $ 123.31 | ||||
| F15 | 5303918569 | Evaporator Kit,c/d Fdbm |
|
Immediately | $ 270.88 | ||||
| F21 | 242046001 | Thermostat-defrost |
|
Immediately | $ 72.48 | ||||
| F29 | 5303918437 | Compressor Kit |
|
$ 840.65 | |||||
| F30 | 241577505 | Invertor |
|
Immediately | $ 364.10 | ||||
| F4 | 5303305677 | Drier-filter (Replaces: 242047603) |
|
Immediately | $ 31.67 | ||||
| F50 | 242115226 | Board-main Power,board & Housing |
|
- | |||||
| F50A | 241891604 | Board-led Power |
|
- | |||||
| F50A | 241852501 | Clip,wiring Harness |
|
$ 15.60 | |||||
| F6 | 241516904 | Cord-service (Replaces: 241516901) |
|
Immediately | $ 38.68 | ||||
| F60 | 242018301 | Motor-condenser Fan |
|
Immediately | $ 138.56 | ||||
| FNI | 5303918553 | Heat Exchanger Kit,suction Line ,service |
|
$ 303.40 | |||||
| FNI | 241510904 | Harness-dispenser,grounding |
|
$ 60.96 | |||||
| FNI | 242119001 | Harness-wiring |
|
$ 122.09 | |||||
| FNI | 242141401 | Harness-wiring,machine Compt |
|
$ 219.17 | |||||
| NI | 241947701 | Spacer,heat Exchanger |
|
$ 100.11 | |||||
| NI | 241810104 | Seal,housing |
|
$ 12.13 | |||||
| NI | 242036801 | Clip-tube,drain |
|
$ 96.39 | |||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| NI | 241842301 | Cap-thermistor |
|
Immediately | $ 34.02 | ||||
| NI | 5303918554 | Hot Tube Repair Kit,service |
|
$ 397.61 | |||||
| NI | 3205266 | Edge Protector, Wiring Harness |
|
$ 80.09 | |||||
| NI | 218515403 | Clip-grille |
|
$ 29.06 | |||||
| NI | 240346701 | Tape-foam Seal,shroud |
|
$ 29.77 |
