SELECT A DIAGRAM

01 - Lower Cabinet And Front Panel Parts

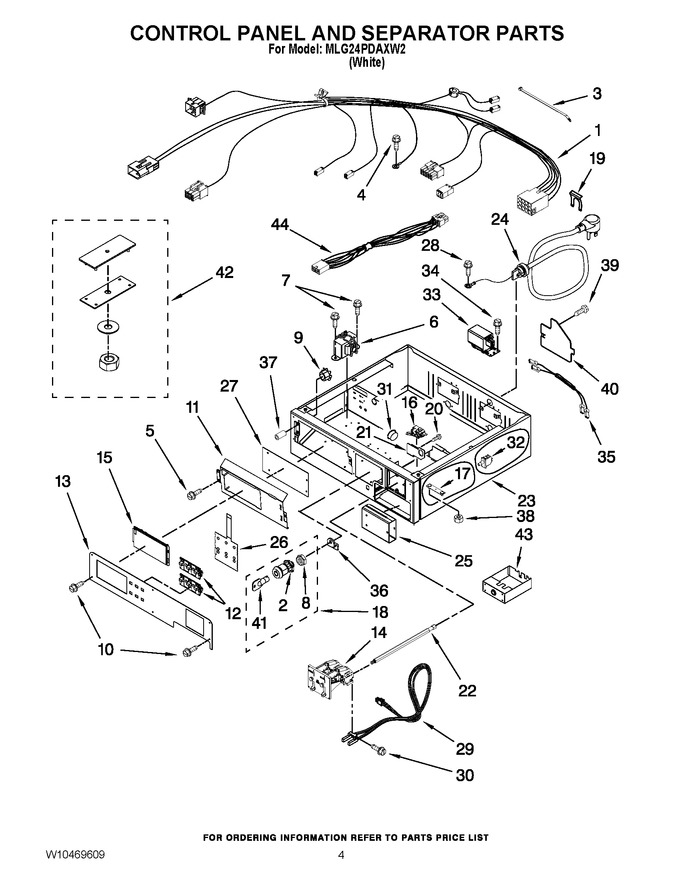

02 - Control Panel And Separator Parts


03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Burner Assembly


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167621		Harness, Collar		Appelez-nous	-
2	W11395752		Hex Nut, 3/4-27   (Replaces: W10139762)				$ 11.74
3	WPW10155270		Tie Cable   (Replaces: 8529895)				$ 5.55
4	W10850756		Screw, 10-32 X 5/8   (Replaces: 697776)				$ 6.98
5	W10756178		Screw, 6-20 X 1/2   (Replaces: W10140652)				$ 5.39
6	WPW10133285		Transformer 120vac To 22.5vac   (Replaces: W10133285)				$ 184.03
7	WP90767		Screw, 8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.04
8	WPW10133264		Hex-nut 9/32 - 28   (Replaces: W10177242)				$ 125.12
9	WPW10139046		Nut 6-32   (Replaces: W10139046)				$ 7.91
10	WPW10131119		Screw, 8-18 X 1/2   (Replaces: W10386302)				$ 6.26
11	W10163677		Plate, Control Mounting		Appelez-nous	-
12	WPW10424308		Push Button   (Replaces: W10131113)			Immediately	$ 18.38
13	W10135185		Facia Console		Appelez-nous	-
14	W11643135		Coin Drop Assembly   (Replaces: W10133245)				$ 512.07
15	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 63.37
16	WPW10447152		Switch, Service Access   (Replaces: W10447152)				$ 37.08
17	W10159907		Mounting Strap Assembly		Appelez-nous	-
18	WPW10133264		Lock Assembly   (Replaces: W10133264)				$ 125.12
19	W11712577		Strain-relief   (Replaces: 694415)			Immediately	$ 6.66
20	3400408		Screw, 4-40 X 1/16		Appelez-nous	-
21	W10160652		Bracket-switch		Appelez-nous	-
22	WPW10137319		Bolt, 10-32 X 6.06   (Replaces: W10137319)				$ 73.17
23	WPW10159849		Collar   (Replaces: W10159849)				$ 465.70
24	WPW10581952		Cord-power   (Replaces: W10239314)				$ 106.02
25	W11204020		Vault-body Assembly   (Replaces: W10133258)				$ 361.48
26	WPW10133278		Membrane Switch Assembly   (Replaces: W10133278)				$ 104.73
27	W11392903		Control Board   (Replaces: W10130700)				$ 615.23
28	W10850756		Screw, 10-32 X 1/2   (Replaces: 8533974)				$ 6.98
29	W10247388		Coin Optic Sensor Assembly (black)		Appelez-nous	-
29	WPW10247389		Coin Optic Sensor Assembly (white)   (Replaces: W10247389)			Immediately	$ 104.31
30	WP3395530		Screw, 6-20 X 1.000   (Replaces: W10142655)				$ 6.93
31	W10165297		Snap Bushing		Appelez-nous	-
32	WPW10131838		Switch-vault & Service Door   (Replaces: W10131838)				$ 21.52
33	WPW10367632		Rfi Filter   (Replaces: W10306592)				$ 110.00
34	WP90767		Screw, 8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.04
35	W10188051		Jumper, Line Filter		Appelez-nous	-
36	W11165684		Locking Cam   (Replaces: W10133266)				$ 8.20
37	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
38	WPW10080190		Nut, 3/8-16   (Replaces: W10080190)			Immediately	$ 7.64
39	W11676450		Screw, 10-16 X 3/8   (Replaces: 3400000)				$ 12.65
40	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 539.78
41	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 19.89
42	W11416034		Kit-coin Box Security   (Replaces: W10169579)				$ 113.40
43	W11204019		Coin-box   (Replaces: W10133248)				$ 140.45
44	W10111027		Jumper, Transformer				$ 41.23

    View Diagram in Separate Window       Print Part List
