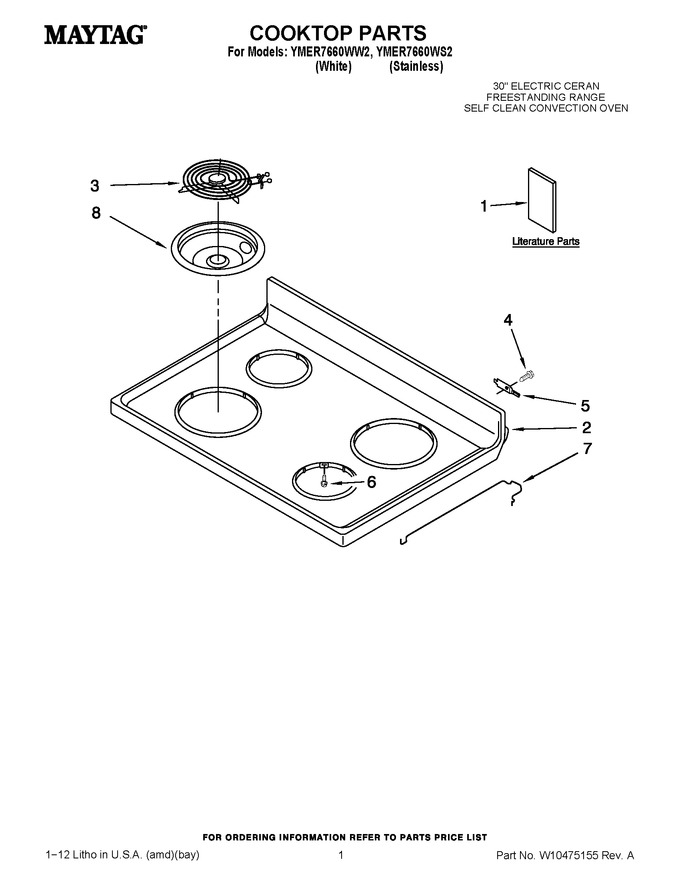

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10419390 | Owners Manual |
|
- | |||||
| 1 | W10361708 | Tech Sheet (english) |
|
- | |||||
| 1 | W10361709 | Tech Sheet (french) |
|
- | |||||
| 1 | W10403812 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 359.41 | |||||
| 2 | 8195534 | Cooktop (black) (Replaces: 3186233) |
|
$ 437.09 | |||||
| 3 | WPW10259865 | Element, Surface (8`` Element) (Replaces: W10259865) |
|
Immediately | $ 105.92 | ||||
| 3 | WPW10259868 | Element, Surface (6`` Element) (Replaces: W10259868) |
|
Immediately | $ 112.28 | ||||
| 4 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 5 | WP3195060 | Hinge, Pin (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 6 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.04 | |||||
| 7 | WP3195812 | Rod, Support Ct (Replaces: 3195812) |
|
Immediately | $ 7.48 | ||||
| 8 | WPW10196406 | Pan, Drip (8``) (Replaces: W10196406) |
|
Immediately | $ 12.05 |
