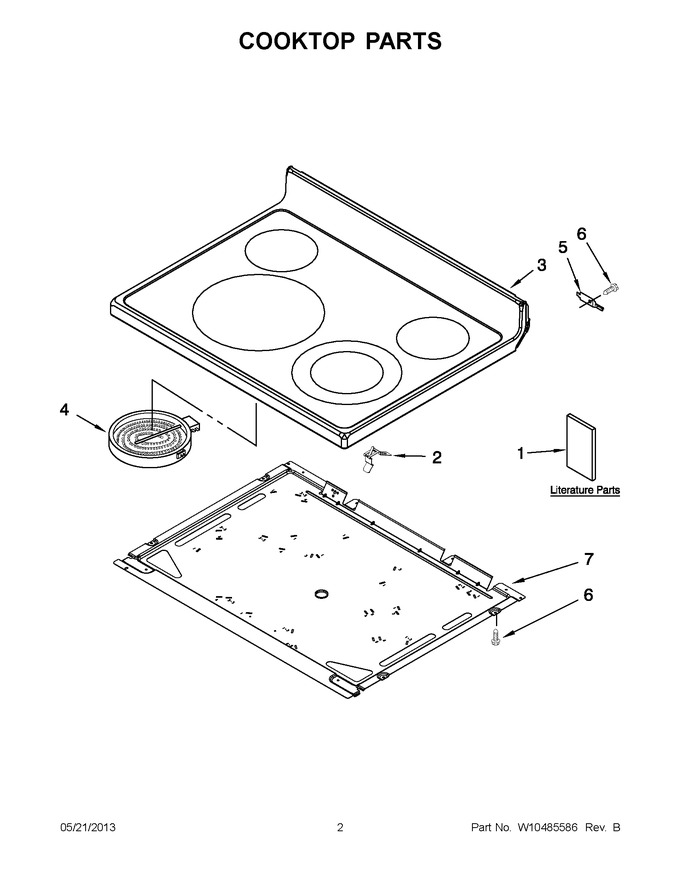

01 - Cooktop Parts
02 - Control Panel Parts
03 - Drawer And Broiler Parts
04 - Chassis Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403812 | Instructions, Installation |
|
- | |||||
| 1 | W10434987 | Tech Sheet (english) |
|
- | |||||
| 1 | W10434988 | Tech Sheet (french) |
|
- | |||||
| 1 | W10419391 | User Instructions |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | W10211393 | Cooktop (black) |
|
- | |||||
| 3 | W10211392 | Cooktop (white) |
|
- | |||||
| 4 | W10823727 | Element (3000/1900w) (left Front) (Replaces: W10162040) |
|
Immediately | $ 293.68 | ||||
| 4 | W11517959 | Element (3000/1400w) (right Front) (Replaces: W10169799) |
|
Immediately | $ 121.00 | ||||
| 4 | W10823711 | Element (1200w) (right Rear & Left Rear) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 5 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 122.99 |
