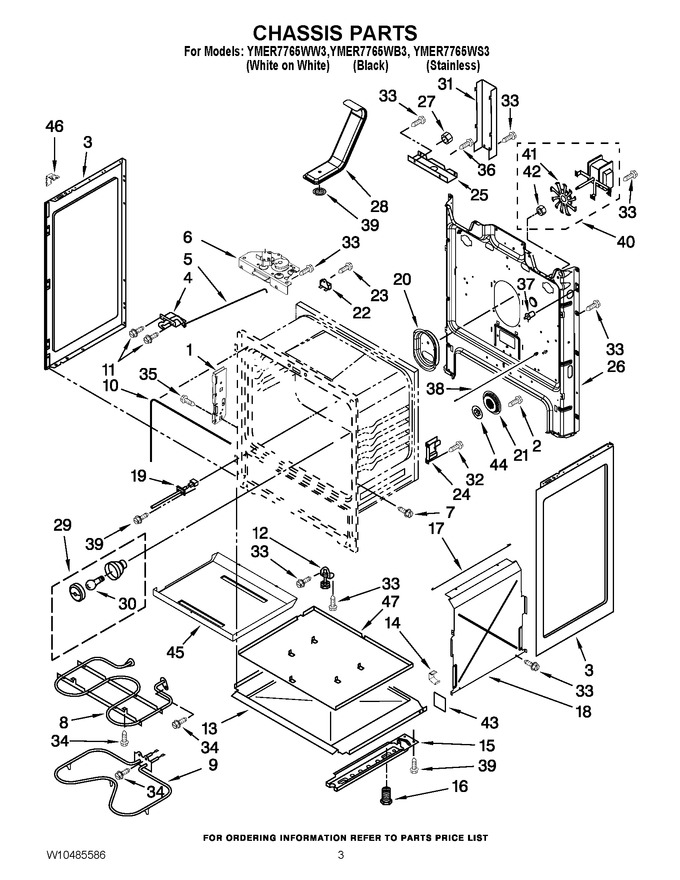

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10647259 | Receiver, Door Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 2 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 148.35 | ||||
| 3 | WPW10575396 | Panel, Side (white-textured) (Replaces: W10322769) |
|
$ 133.84 | |||||
| 4 | WP9761013 | Latch, Door (Replaces: 9761013) |
|
$ 219.74 | |||||
| 5 | W10078380 | Rod, Latch |
|
$ 81.35 | |||||
| 6 | WPW10107840 | Latch Asy, Rear (Replaces: W10107840) |
|
Immediately | $ 100.71 | ||||
| 7 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 6.98 | |||||
| 8 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 139.16 | ||||
| 9 | WP9755770 | Element, Bake (Replaces: W10308474) |
|
Immediately | $ 105.89 | ||||
| 10 | W11542153 | Seal, Oven Door (Replaces: 8522416) |
|
Immediately | $ 45.18 | ||||
| 11 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 12 | WPW10341186 | Foot, Front (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 13 | W10134121 | Tray, Insulation |
|
$ 38.36 | |||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 41.50 | ||||
| 15 | W11818353 | Rail, Base (right Hand) (Replaces: W10390007) |
|
$ 53.71 | |||||
| 15 | W11818353 | Rail, Base (left Hand) (Replaces: W10390008) |
|
$ 53.71 | |||||
| 16 | WPW10058460 | Foot, Rear (Replaces: W10058460) |
|
Immediately | $ 7.07 | ||||
| 17 | W10727426 | Rod, Insl Retainer (Replaces: W10196451) |
|
Immediately | $ 72.56 | ||||
| 18 | W10450380 | Retainer, Side (Replaces: 9758238) |
|
- | |||||
| 19 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 96.15 | ||||
| 20 | W10134126 | Bracket, Fan |
|
$ 20.56 | |||||
| 21 | WPW10134124 | Cover, Fan (Replaces: W10134124) |
|
Immediately | $ 87.93 | ||||
| 22 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 42.94 | ||||
| 23 | 3196172 | Screw |
|
Immediately | $ 11.55 | ||||
| 24 | W10404688 | Bracket, Oven Support (Replaces: W10355173) |
|
$ 15.17 | |||||
| 25 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 26 | W10273169 | Back, Main |
|
- | |||||
| 27 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | ||||
| 28 | WPW10134285 | Vent Tube Asm (Replaces: W10134285) |
|
Immediately | $ 225.43 | ||||
| 29 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 78.31 | ||||
| 30 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 31 | WPW10326122 | Cover, Box (Replaces: W10326122) |
|
$ 119.66 | |||||
| 32 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 33 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 34 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.04 | ||||
| 35 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 36 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.16 | |||||
| 37 | 9757238 | Switch, Door |
|
$ 64.08 | |||||
| 38 | 9757239 | Rod, Door Switch Rear Mount |
|
$ 82.60 | |||||
| 39 | 9761301 | Screen, Catalyst |
|
$ 126.77 | |||||
| 40 | W11582241 | Fan, Motor Cnvctn (Replaces: W10167917) |
|
Immediately | $ 115.48 | ||||
| 41 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.12 | ||||
| 42 | W11548755 | Nut (Replaces: W10213748) |
|
$ 13.02 | |||||
| 43 | W10646923 | Card, Insulator (Replaces: 9759689) |
|
$ 16.78 | |||||
| 44 | WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 7.01 | ||||
| 45 | W10183712 | Tray-bake, Hidden |
|
$ 209.10 | |||||
| 46 | W10183541 | Clip, Spring |
|
- | |||||
| 47 | W10134125 | Shield, Heat |
|
$ 136.60 | |||||
| NI | WPW10208653 | Insulation, Wrap (Replaces: W10208653) |
|
Immediately | $ 49.92 | ||||
| NI | W10326347 | Insulation, Back |
|
- | |||||
| NI | W11684918 | Insulation, Vent (Replaces: W10333344) |
|
Immediately | $ 30.41 |
