SELECT A DIAGRAM

01 - Cover

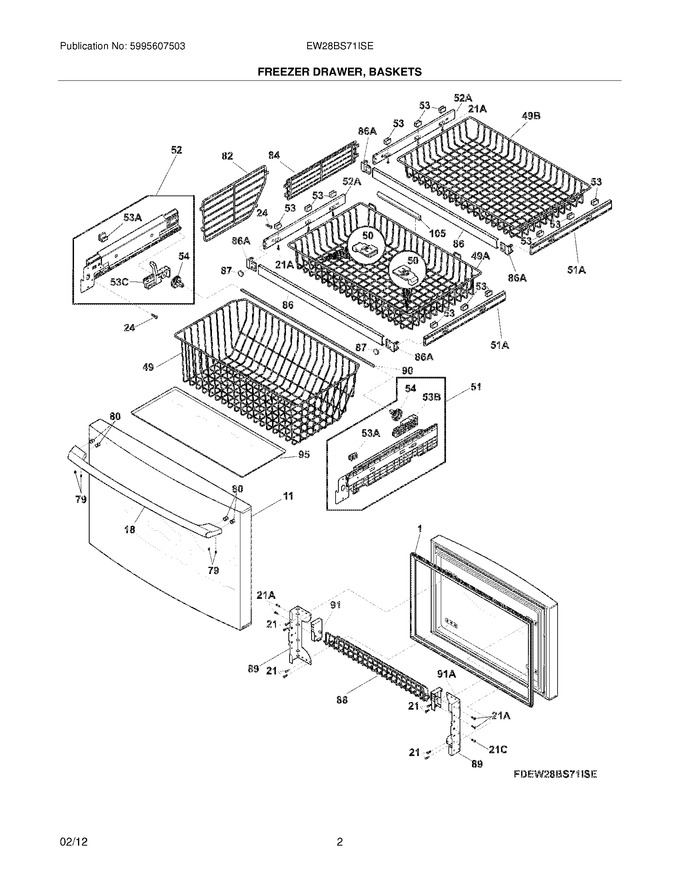

03 - Freezer Drawer - Basket


05 - Fresh Food Door


07 - Cabinet


09 - Shelves


11 - System


13 - Controls & Ice Dispenser


15 - Ice Container


17 - Ice Maker


20 - Wiring Diagram


21 - Wiring Diagram


22 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241987920		Drawer,stainless ,freezer				$ 371.43
18	241881310		Handle-frzr Drawer,stainless				$ 271.45
21	241695904		Screw				$ 14.41
24	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
49	242026801		Basket-frzr,lower				$ 252.95
50	242219501		Clip-basket,pull Side		Appelez-nous	-
51	242130504		Slide Assembly,basket Lower ,rh ,freezer Drawer		Appelez-nous	-
52	242130503		Slide Assembly,basket Lower ,lh ,freezer Drawer		Appelez-nous	-
53	5303918801		Retainer-basket   (Replaces: 242216301)				$ 12.89
54	242136801		Pinion		Appelez-nous	-
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
82	242026901		Divider,basket				$ 61.81
84	241780904		Divider,basket				$ 71.29
86	242140601		Bar Stabilizer,outside ,freezer Drawer		Appelez-nous	-
87	241812202		Magnet,freezer Drawer				$ 72.30
88	241824008		Rack-tilt Out,door .   (Replaces: 241824006)				$ 123.62
89	241972302		Bracket-freezer Drawer				$ 109.21
90	242136901		Bar-timing				$ 35.45
91	241824102		Cap-door Rack				$ 17.44
95	241770808		Tray,spill Guard				$ 98.33
105	242116801		Trim-basket				$ 17.72
21A	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
21C	241899703		Screw,truss Head ,no.10-32 X 1/4 ,zinc				$ 15.92
49A	241780810		Basket-frzr,upper				$ 214.80
49B	241831302		Basket-frzr,ceiling ,up Upper				$ 158.58
51A	5304491063		Slide Assembly,basket ,rh ,freezer Drawer   (Replaces: 241894206)				$ 155.21
52A	241894207		Slide Assembly,basket ,lh ,freezer Drawer		Appelez-nous	-
53A	242139001		Retainer-basket		Appelez-nous	-
53B	242139102		Retainer-basket,rear Rh		Appelez-nous	-
53C	242139101		Retainer-basket,rear Lh		Appelez-nous	-
86A	242140801		Bar Stabilizer,inside ,freezer Drawer		Appelez-nous	-
91A	241824101		Cap,door Rack ,white				$ 17.44
F1	5304537408		Gasket-frzr Drawer,white ,magnetic   (Replaces: 241778302)			Immediately	$ 86.28
F21C	5304497384		Plate,tapping   (Replaces: 242147601)				$ 15.60
NI	241979601		Bumper,rubber				$ 22.68
NI	241701902		Screwdriver,hex ,3/32`` ,ball Driver				$ 19.85
NI	241999901		Guide,divider ,plastic (abs) ,lower				$ 25.10
NI	241999902		Guide,divider ,plastic (abs) ,lower ,lh				$ 21.27
NI	241601002		Wrench,allen		Appelez-nous	-
NI	242011101		Pin-lock				$ 15.17
NI	242039702		Screw				$ 4.26

    View Diagram in Separate Window       Print Part List
