01 - Top And Cabinet Parts

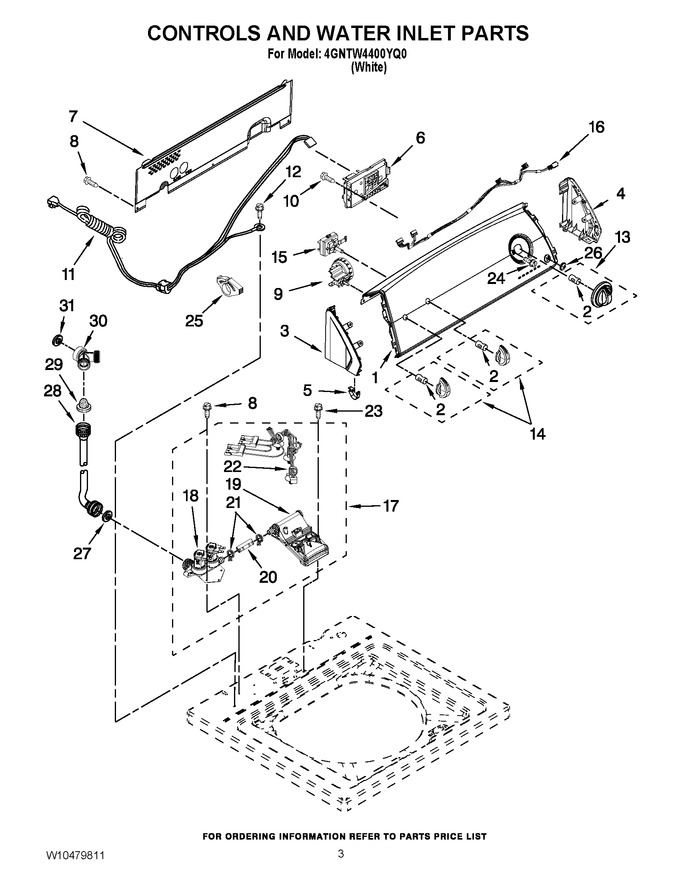

02 - Controls And Water Inlet Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10449048 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WPW10251358 | Cap, End (l.h.) (includes Item 5) (Replaces: W10251358) |
|
$ 51.42 | |||||
| 4 | WPW10251355 | Cap, End (r.h.) (includes Item 5) (Replaces: W10251355) |
|
$ 51.39 | |||||
| 5 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 17.40 | ||||
| 6 | W10480678 | Control Unit Assembly, Machine & Motor (Replaces: W10455302) |
|
$ 409.77 | |||||
| 7 | WPW10420985 | Panel, Console Rear Cover (Replaces: W10420985) |
|
$ 263.85 | |||||
| 8 | WP489069 | Screw, 8-18 X 3/8 (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10268911 | Switch, Water Level (Replaces: W10268911) |
|
Immediately | $ 190.65 | ||||
| 10 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | W10422755 | Cord-power |
|
- | |||||
| 12 | W10846509 | Screw, Power (cord Ground) (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | WPW10327522 | Knob, Timer (Replaces: W10327522) |
|
$ 50.97 | |||||
| 14 | WPW10327523 | Knob, Control (Replaces: W10327523) |
|
$ 55.13 | |||||
| 15 | WPW10285512 | Switch, Rotary Encoder (Replaces: W10285512) |
|
Immediately | $ 190.47 | ||||
| 16 | W10291178 | Harness, Upper |
|
- | |||||
| 17 | WPW10337066 | Inlet Assembly, Water (Replaces: W10337066) |
|
$ 209.70 | |||||
| 18 | WPW10336726 | Valve, Water Mixing (Replaces: W10336726) |
|
$ 195.50 | |||||
| 19 | WPW10441423 | Vacuum Break (Replaces: W10441423) |
|
$ 90.33 | |||||
| 20 | W10238347 | Hose, Vacuum Break |
|
$ 25.86 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 8.82 | ||||
| 22 | WPW10344775 | Harness, Valve (Replaces: W10344775) |
|
$ 171.51 | |||||
| 23 | WP8281163 | Screw, 8-16 X 1/2 (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 24 | WP3400818 | Screw, 8-18 X.20 (Replaces: 3400818) |
|
$ 8.81 | |||||
| 25 | WPW10663966 | Clamp (Replaces: W10348582) |
|
$ 224.26 | |||||
| 26 | WPW10251309 | Push Button, Start (Replaces: W10251309) |
|
Immediately | $ 76.00 | ||||
| 27 | WP16123 | Washer, Water Inlet (Replaces: W10242307) |
|
$ 8.16 | |||||
| 28 | WP89503 | Hose, Inlet (cold) (Replaces: W10194210) |
|
Immediately | $ 24.09 | ||||
| 28 | WP89503 | Hose, Inlet (hot) (Replaces: W10196191) |
|
Immediately | $ 24.09 | ||||
| 29 | 285452A | Washer, Filter (Replaces: 353362) |
|
Immediately | $ 9.69 | ||||
| 30 | WPW10269488 | Connector, Y Hose (Replaces: W10269488) |
|
$ 89.64 | |||||
| 31 | WP3357450 | Washer, Hose (Replaces: 3357450) |
|
$ 11.56 |
