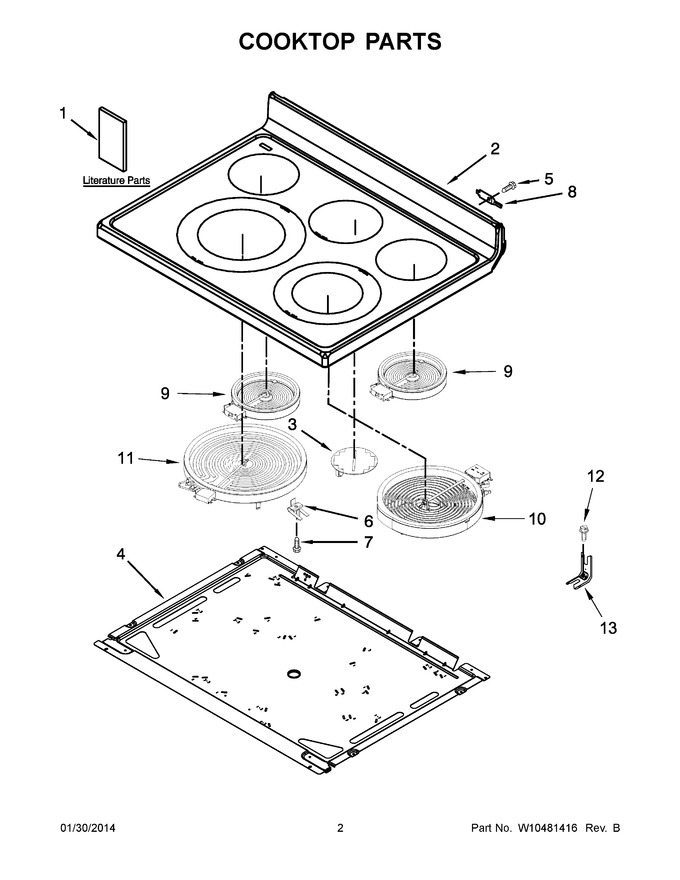

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer And Rack Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403811 | Instructions, Installation |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10432691 | Tech Sheet |
|
- | |||||
| 2 | W10487155 | Cooktop (white) (Replaces: W10473593) |
|
- | |||||
| 2 | W10487156 | Cooktop (black) (Replaces: W10473598) |
|
- | |||||
| 3 | W11047668 | Element, Warm Zone (Replaces: W10388271) |
|
$ 113.96 | |||||
| 4 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 122.99 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 6 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 7 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 8 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 9 | W10823711 | Element (1200w) (right Rear And Left Rear) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 10 | WPW10275049 | Element (2500/1200w) (right Front) (Replaces: W10275049) |
|
Immediately | $ 282.81 | ||||
| 11 | W10823727 | Element (3000/1900w) (left Front) (Replaces: W10162040) |
|
Immediately | $ 293.68 | ||||
| 12 | WP7101P485-60 | Screw, Anti Tip (Replaces: 7101P485-60) |
|
$ 26.33 | |||||
| 13 | W11447673 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.64 |
