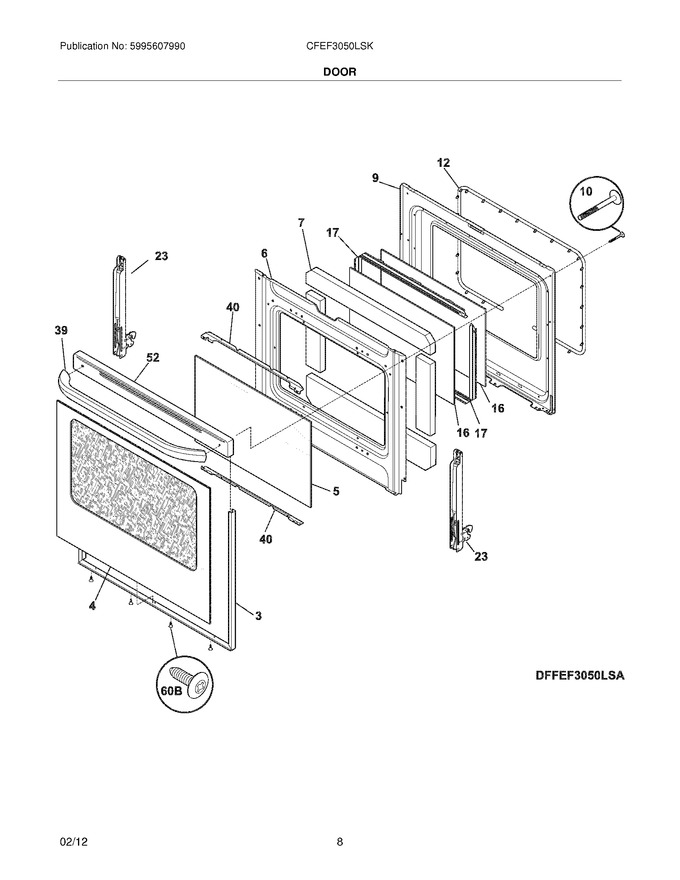

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935377 | Trim Kit-door,3 Sided ,black ,w/tape (Replaces: 5303935317) |
|
Immediately | $ 58.12 | ||||
| 4 | 316453030 | Glass Assembly,oven Door ,w/tape ,outer |
|
$ 518.72 | |||||
| 5 | 316502601 | Glass,door ,airwash (Replaces: 316502600) |
|
Immediately | $ 207.85 | ||||
| 6 | 316406328 | Shield-wool (Replaces: 316406312) |
|
$ 87.21 | |||||
| 7 | 316405600 | Insulation,oven Door |
|
$ 76.55 | |||||
| 9 | 316423701 | Liner,oven Door |
|
$ 143.50 | |||||
| 10 | 5304507924 | Screw,handle Mtg ,10-24 X 2.188 ,(2) (Replaces: 316513301) |
|
Immediately | $ 16.48 | ||||
| 12 | 316405000 | Seal,oven Door |
|
Immediately | $ 179.17 | ||||
| 16 | 5304503232 | Glass,oven Door ,inner (Replaces: 316117503) |
|
$ 116.95 | |||||
| 17 | 5304504811 | Spacer,door Glass ,(2) (Replaces: 316559901) |
|
Immediately | $ 25.02 | ||||
| 23 | 316456311 | Hinge,oven Door ,(2) |
|
$ 90.89 | |||||
| 39 | 316558201 | Handle,door ,stainless (Replaces: 316558200) |
|
$ 174.23 | |||||
| 40 | 316530403 | Bracket-airwash Glass Wash |
|
$ 33.18 | |||||
| 52 | 316575501 | Cap,door Trim ,black |
|
$ 110.73 | |||||
| 60B | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316418900 | Screw,sims Lp ,no.8-32 X 5/16`` ,black |
|
$ 14.18 | |||||
| NI | 316433603 | Label,anti-tip |
|
$ 3.55 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 |
