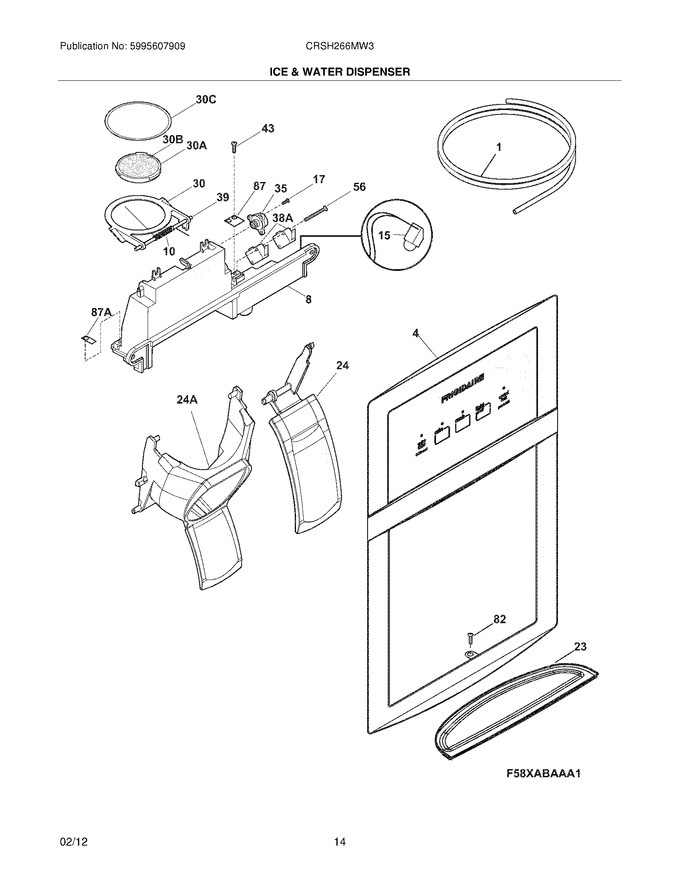

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976409 | Tube,water ,60`` ,natural ,door |
|
Immediately | $ 60.25 | ||||
| 10 | 241688901 | Spring-torsion |
|
Immediately | $ 21.27 | ||||
| 17 | 241679801 | Screw |
|
$ 14.18 | |||||
| 23 | 241947001 | Drip Tray,white |
|
$ 19.85 | |||||
| 24 | 242083601 | Actuator-water,white |
|
$ 90.04 | |||||
| 30 | 241688401 | Door Assy-ice Chute |
|
$ 49.62 | |||||
| 35 | 241689301 | Damper-rotary |
|
$ 70.52 | |||||
| 39 | 241688801 | Pin-hinge |
|
$ 43.24 | |||||
| 43 | 215296301 | Screw,plask H/l ,no.6 X 3/8 |
|
- | |||||
| 56 | 241689201 | Screw-micro Switch,pan Head |
|
$ 13.46 | |||||
| 82 | 5304453707 | Screw,plask ,no.8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 15.92 | ||||
| 87 | 241688302 | Bearing Plate |
|
$ 19.85 | |||||
| 24A | 242083501 | Actuator-ice,white |
|
$ 116.45 | |||||
| 30A | 241688501 | Door Center |
|
$ 52.97 | |||||
| 30B | 241688601 | Insulation-door |
|
$ 63.17 | |||||
| 30C | 241688701 | Door Seal |
|
$ 40.46 | |||||
| 87A | 241688301 | Bearing Plate |
|
$ 19.85 | |||||
| F15 | 242065203 | Light-led (Replaces: 242070901) |
|
$ 103.48 | |||||
| F38A | 241689106 | Switch-micro,single Pole ,double Throw (Replaces: 241689101) |
|
Immediately | $ 8.60 | ||||
| F38A | 242065203 | Harness-wiring (Replaces: 242065201) |
|
$ 103.48 | |||||
| F4 | 242097906 | Board-control,assembly |
|
- | |||||
| F8 | 242083401 | Module-dispenser |
|
$ 138.21 | |||||
| FNI | 242053503 | Board-control |
|
Immediately | $ 268.46 | ||||
| NI | 218976419 | Tube-water Inlet,5/16 - 34`` ,yellow ,valve To Door |
|
$ 22.68 | |||||
| NI | 218976429 | Tube-water Inlet,5/16 - 97.50`` ,brown/tan |
|
$ 40.40 | |||||
| NI | 241850615 | Tube-water Inlet,inlet Valve ,to I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NI | 240561701 | Seal-water Inlet,inlet Valve ,to Ice Maker |
|
Immediately | $ 20.56 | ||||
| NI | 241732703 | Light Pipe,reflector |
|
- | |||||
| NI | 218515403 | Clip-grille |
|
$ 29.06 | |||||
| NI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 |
