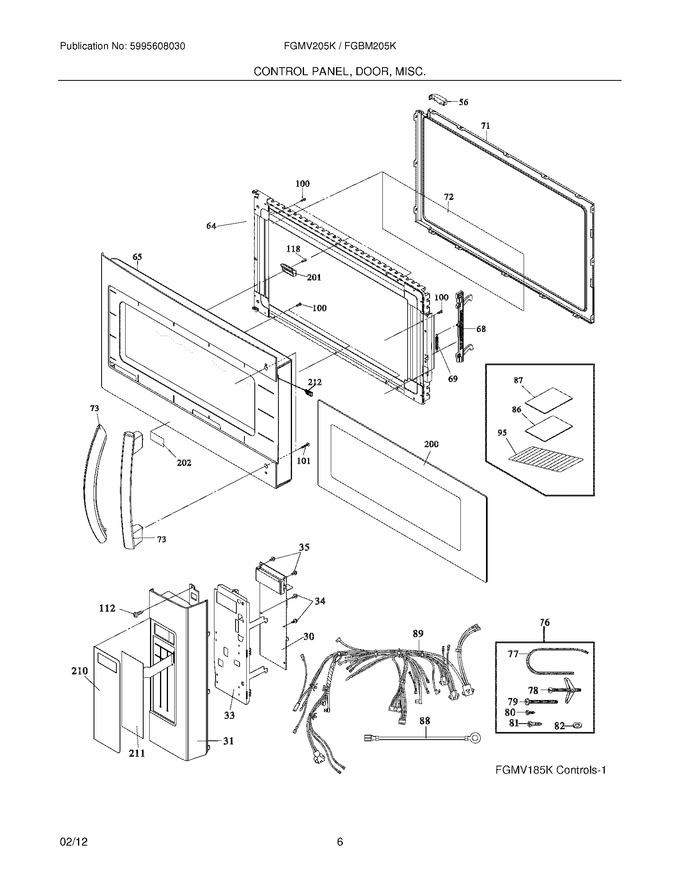

05 - Control Panel, Door, Misc
08 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 31 | 5304472038 | Cover,control Panel ,black |
|
- | |||||
| 33 | 5304475788 | Panel,control Mount |
|
- | |||||
| 34 | 5304467710 | Screw,3 Mm X 8 Mm |
|
$ 14.18 | |||||
| 35 | 5304456930 | Screw,3 Mm X 10 Mm |
|
- | |||||
| 56 | 5304463156 | Door Stop |
|
$ 32.56 | |||||
| 64 | 5304467789 | Panel,inner Door ,black |
|
$ 207.64 | |||||
| 65 | 5304472045 | Frame,door ,black ,w/glass |
|
- | |||||
| 68 | 5304467798 | Latch,door |
|
$ 33.86 | |||||
| 69 | 5304440316 | Spring,door Latch |
|
Immediately | $ 61.00 | ||||
| 71 | 5304467802 | Frame,choke Cover ,inner Door |
|
$ 89.85 | |||||
| 72 | 5304467803 | Seal,door ,film |
|
$ 24.53 | |||||
| 73 | 5304472047 | Handle,door ,black ,gallery |
|
- | |||||
| 76 | 5304464349 | Hardware Kit,installation (Replaces: 5304467765) |
|
Immediately | $ 57.11 | ||||
| 77 | 5303318761 | Sleeve,power Cord ,grommet |
|
$ 25.05 | |||||
| 78 | 5303318762 | Screw,toggle |
|
$ 11.71 | |||||
| 79 | 5304481344 | Screw,machine |
|
$ 12.68 | |||||
| 80 | 5304502863 | Screw,4 Mm X 8 Mm ,silver (Replaces: 5304451552) |
|
$ 10.85 | |||||
| 81 | 5304453723 | Screw,5mm X 35mm |
|
$ 13.28 | |||||
| 82 | 5304453724 | Washer |
|
$ 12.68 | |||||
| 86 | 5304467832 | Template,installation ,top |
|
$ 19.52 | |||||
| 87 | 5304481351 | Template,installation ,wall |
|
$ 16.78 | |||||
| 95 | 5304463180 | Rack,microwave Oven ,wire |
|
$ 123.33 | |||||
| 100 | 5304468930 | Screw,4 Mm X 10 Mm |
|
- | |||||
| 101 | 5304468931 | Screw,4 Mm X 15 Mm |
|
$ 9.83 | |||||
| 112 | 5304451553 | Screw,4 Mm X 12 Mm |
|
$ 14.89 | |||||
| 118 | 5304451561 | Screw,4 Mm X 8 Mm |
|
$ 16.63 | |||||
| 200 | 5304472049 | Glass,door ,black |
|
- | |||||
| 201 | 5304467794 | Clip,glass Retainer ,door |
|
$ 15.96 | |||||
| 202 | 5304471837 | Badge,nameplate ,gallery |
|
$ 57.49 | |||||
| 210 | 5304472041 | Overlay,touch Control ,black |
|
- | |||||
| 212 | 5304473837 | Cap,door Glass Clip ,black |
|
- | |||||
| F211 | 5304472043 | Touch Control,key Pad |
|
- | |||||
| F30 | 5304481407 | Control Board,printed Circuit |
|
- | |||||
| F88 | 5304467828 | Wire,ground |
|
- | |||||
| F89 | 5304468945 | Wiring Harness,main |
|
- |
