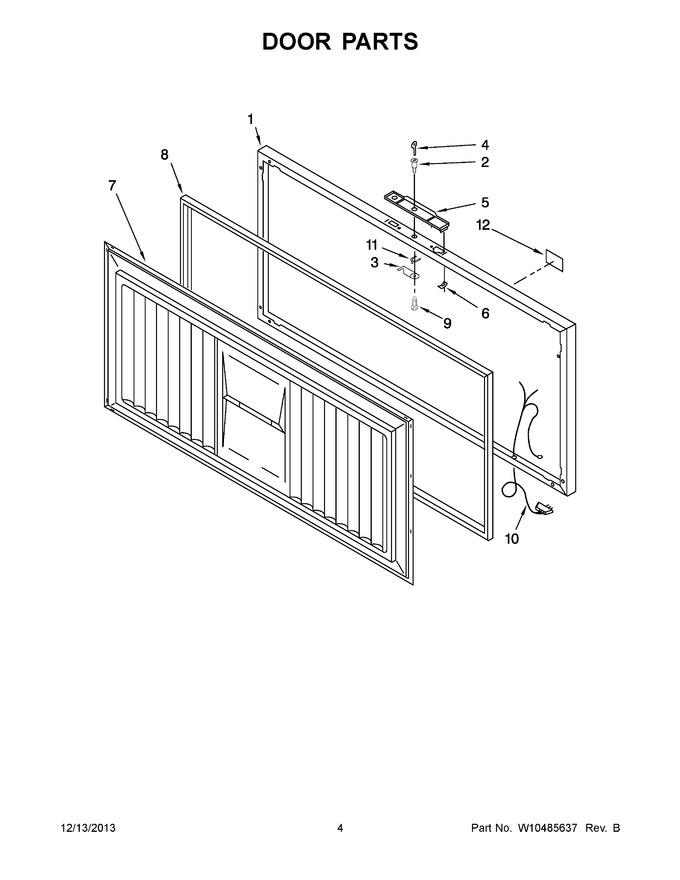

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4390902 | Panel, Exterior Door (Replaces: 4-35652-302) |
|
$ 384.62 | |||||
| 2 | 3-35284-001 | Assembly, Lock |
|
$ 24.42 | |||||
| 3 | 2-35195-006 | Lock, Hook Bolt |
|
$ 23.46 | |||||
| 4 | 1-26356 | Key |
|
$ 5.83 | |||||
| 5 | 4-35663-032 | Handle |
|
$ 137.17 | |||||
| 6 | 3-24059-024 | Clip, Oblong |
|
$ 12.11 | |||||
| 7 | 4-25774-028 | Panel, Interior Door |
|
$ 31.30 | |||||
| 8 | WP4-35260-005 | Gasket (Replaces: 4-35260-005) |
|
$ 287.65 | |||||
| 9 | W11233072 | Screw (Replaces: 3-24004-100) |
|
Immediately | $ 12.62 | ||||
| 10 | W10364532 | Harness, Wiring (lid) |
|
- | |||||
| 11 | 1-26359 | Clip, Spring |
|
$ 71.75 | |||||
| 12 | WPW10170766 | Badge (Replaces: W10170766) |
|
Immediately | $ 60.43 |
