01 - Cabinet Parts


02 - Liner Parts

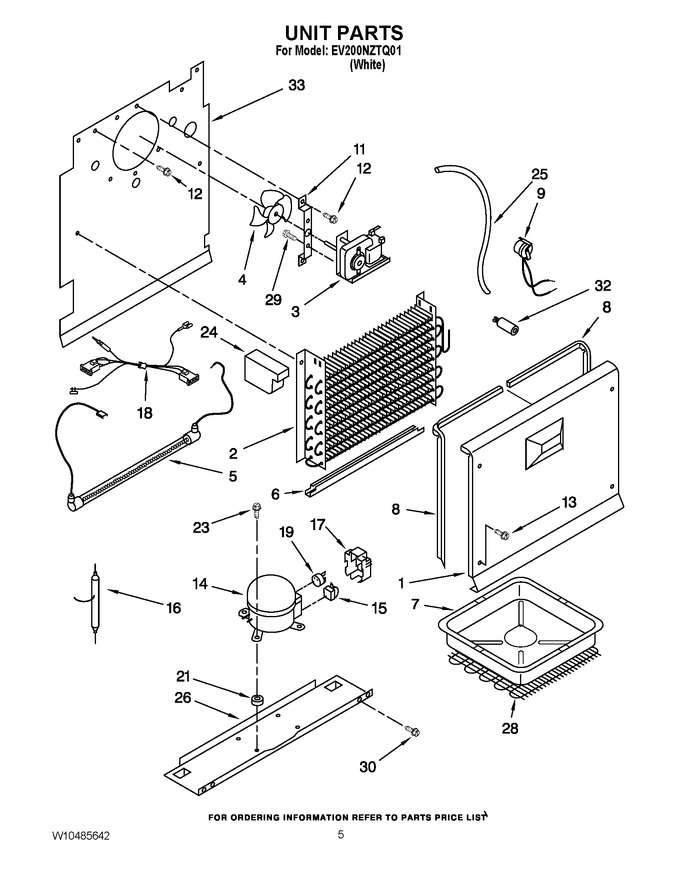

03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4-82699-001		Cover, Evaporator				$ 83.56
2	WP4-81546		Evaporator   (Replaces: 4-81546)				$ 385.21
3	WP3-60336-001		Motor, Fan   (Replaces: 3-60336-001)			Immediately	$ 291.24
4	WPW10445742		Blade, Fan   (Replaces: W10445742)			Immediately	$ 9.05
5	WP3-80405-003		Heater, Defrost   (Replaces: 3-80405-003)				$ 180.25
6	3-82697-001		Shield, Heater		Appelez-nous	-
7	4-82674-001		Pan, Drain		Appelez-nous	-
8	3-60180-002		Gasket, Cover Evaporator				$ 24.93
9	WP1-81801-001		Bi-metal Defrost   (Replaces: 1-81801-001)			Immediately	$ 111.32
11	2-80028-101		Bracket, Fan Mtr				$ 84.58
12	60001022		Screw, Motor   (Replaces: 3-80732-004)				$ 56.93
13	W10451793		Screw (4)		Appelez-nous	-
14	W10309994		Compressor   (Replaces: 4-32972-143)			Immediately	$ 551.61
15	WPW10189190		Relay   (Replaces: 2-35154-010)			Immediately	$ 118.16
16	W10843121		Drier   (Replaces: W10459086)			Immediately	$ 47.31
17	W10393770		Cover   (Replaces: 3-35171-003)				$ 98.67
18	4-81785-001		Harness, Fan		Appelez-nous	-
19	WP2183456		Overload   (Replaces: 2-34286-037)				$ 126.16
21	WP2163786		Compressor, Grommet   (Replaces: 13146462)				$ 7.16
23	8210220		Bolt, Compressor   (Replaces: 2-82082-001)		Appelez-nous	-
24	1-80252-101		Block, Foam				$ 5.86
25	2-82072-003		Exchanger, Heat		Appelez-nous	-
26	WPW10470133		Pan, Compressor   (Replaces: W10470133)				$ 87.25
28	W10451951		Condenser   (Replaces: 4-82234-002)				$ 257.77
29	WP3400094		Screw   (Replaces: 4356970)				$ 7.14
30	WP3-24838-048		Screw   (Replaces: 3-24838-048)				$ 7.00
32	3-23995-015		Grommet		Appelez-nous	-
33	4-80504-101		Plate, Evaporator Mount				$ 109.02
NI	N/P		Refrigerant Charge (6.2 Oz. (r134a))		Appelez-nous	-
