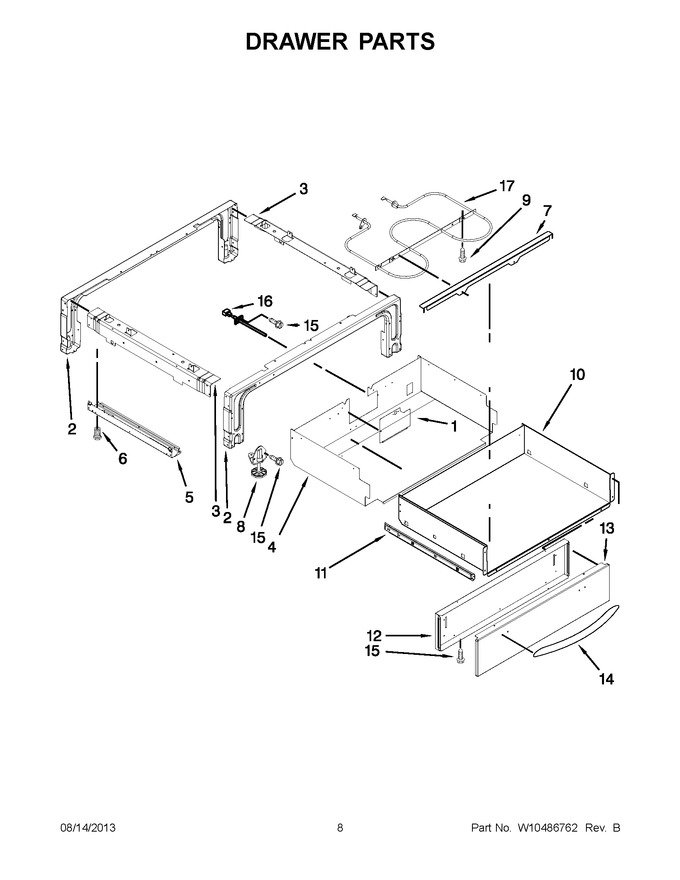

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10153099		Cover, Access		Appelez-nous	-
2	9763501BL		Support, Front & Rear				$ 43.72
3	4453720		Brace, Drawer (right)				$ 34.27
3	4453721		Brace, Drawer (left)				$ 34.27
4	9761796		Enclosure, Warming Drawer				$ 78.12
5	9759954		Base, Side (left)				$ 88.47
5	9759953		Base, Side (right)				$ 108.70
6	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.07
7	9758676		Support, Element		Appelez-nous	-
8	WP3196037		Assembly, Foot   (Replaces: 3196037)				$ 74.67
9	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
10	W10164163		Drawer				$ 163.91
11	WPW10155632		Slide, Drawer (left)   (Replaces: W10155632)				$ 93.18
11	W10155633		Slide, Drawer (right)				$ 60.39
12	W10588269		Panel, Drawer				$ 69.41
13	W10203760		Front, Drawer (black)				$ 18.33
13	W10203763		Front, Drawer (stainless)				$ 99.87
13	W10203762		Front, Drawer (white)				$ 18.87
14	W10292375		Handle, Drawer (black)		Appelez-nous	-
14	W10292379		Handle, Drawer (white)				$ 79.22
14	W10292374		Handle, Drawer (stainless)				$ 100.87
15	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
16	WP8274149		Thermistor, Drawer   (Replaces: 8274149)			Immediately	$ 172.85
17	W10207401		Element, Warming Drawer				$ 105.28

    View Diagram in Separate Window       Print Part List
