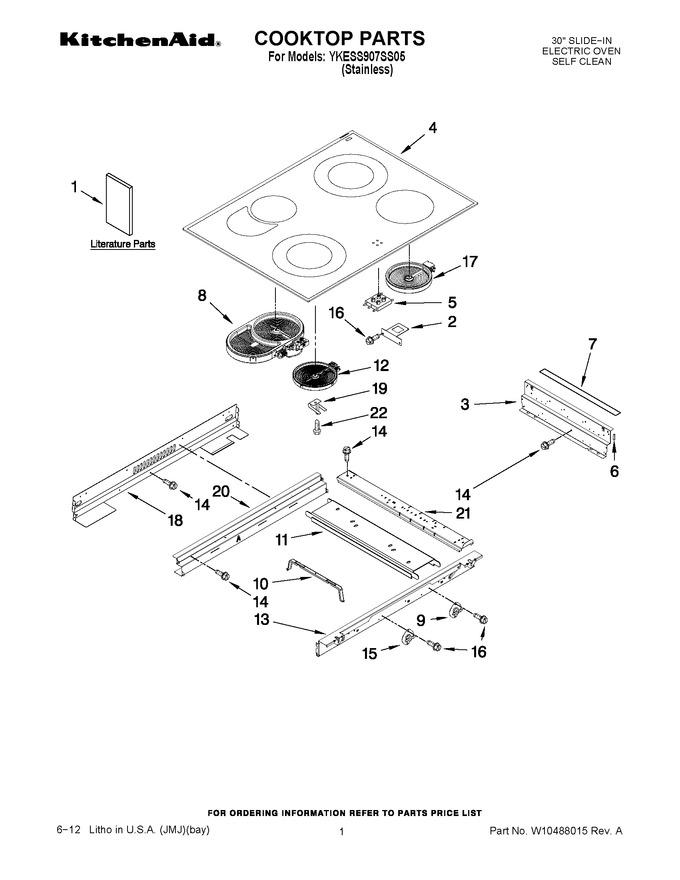

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
1	W10440551		Installation Instructiions (english)		Appelez-nous	-
1	W10075750		Installation Instructiions (french)		Appelez-nous	-
1	W10449874		Use & Care Guide (english)		Appelez-nous	-
1	W10450560		Use & Care Guide (french)		Appelez-nous	-
1	W10220962		Tech Sheet (english)		Appelez-nous	-
1	W10220963		Tech Sheet (french)		Appelez-nous	-
1	9763467		Easy Set Guide		Appelez-nous	-
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
2	9758799		Bracket, Indicator Light				$ 47.83
3	9761422		Frame, Cooktop Side				$ 67.87
4	W10297306		Cooktop (black/stainless)   (Replaces: W10110271)				$ 911.43
5	8523739		Indicator, Lamp Hot Surface				$ 120.71
6	W10123242		Edge Protector (19mm)				$ 8.34
6	W10127413		Edge Protector (38mm)		Appelez-nous	-
7	W10076030		Gasket				$ 78.51
8	W10248257		Element, (lr, 1800/1000w)				$ 150.74
9	WP9759944		Thermostat   (Replaces: 9759944)			Immediately	$ 121.57
10	9756821		Support, Wiring		Appelez-nous	-
11	9757825		Rail, Element Center		Appelez-nous	-
12	WPW10275049		Element, (lf/rr, 2500/1200w)   (Replaces: W10275049)			Immediately	$ 282.81
13	9761423		Frame, Cooktop Front				$ 43.33
14	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
15	341196		Thermostat				$ 33.17
16	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
17	WP8273993		Element, (rf, 1800w)   (Replaces: 8273993)			Immediately	$ 220.06
18	9761724		Cover, Cooktop Rear				$ 35.73
19	9759094		Spring Locator				$ 6.34
20	9761768		Frame, Cooktop Rear				$ 73.35
21	9763517		Rail, Element				$ 62.80
22	WP486754		Screw   (Replaces: 246119)				$ 6.75
