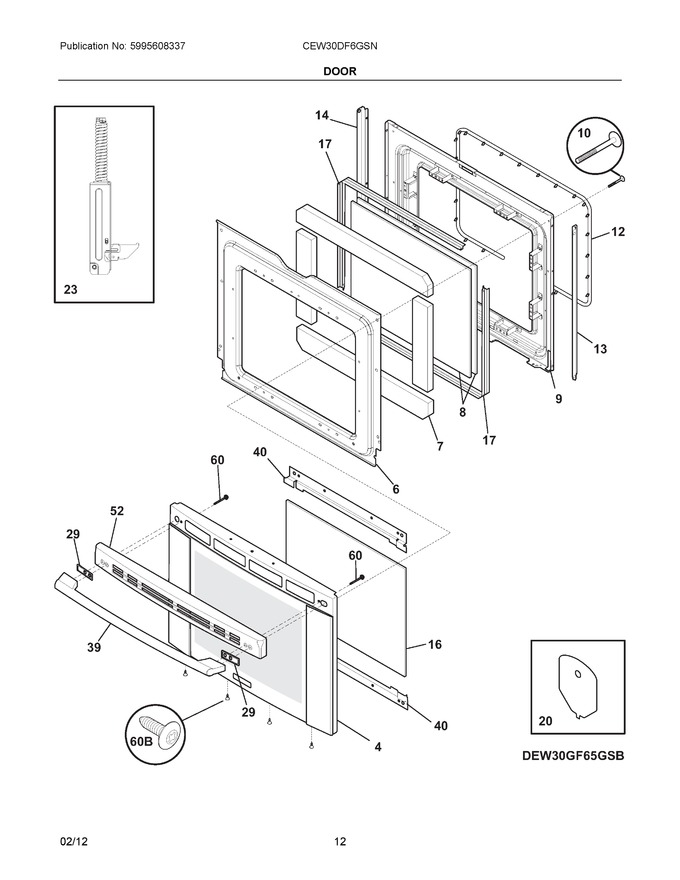

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316538311		Panel Assembly, Door Glass, W/badge, Outer, W/trim & Tape				$ 237.95
6	316503705		Shield, Wool		Appelez-nous	-
7	316510400		Insulation, Oven Door				$ 72.40
8	316503300		Glass, Door, Inner, (2)				$ 166.84
9	316503501		Liner, Oven Door, Cobalt				$ 130.31
10	316516801		Screw, Truss Hd, 10-24 X 3.5, (2)				$ 10.92
12	316403102		Seal, Oven Door				$ 86.40
13	316503102		Trim, Door Filler, Black, Rh		Appelez-nous	-
14	316503103		Trim, Door Filler, Black, Lh		Appelez-nous	-
16	316503400		Glass, Door, Airwash				$ 73.92
17	5304504249		Spacer, Door Glass, (2)   (Replaces: 316502201)				$ 19.13
20	316533801		Plate, Distribution, Load			Immediately	$ 5.67
23	316581001		Hinge Assembly, Door, Blue, (2)				$ 128.99
29	316505401		Spacer, Handle, Gray, (2)				$ 18.17
39	241881301		Handle, Door, Stainless				$ 170.06
40	316517401		Bracket, Airwash Glass, (2)		Appelez-nous	-
52	316535302		Cap, Door, Stainless				$ 211.00
60	5304507924		Screw, Handle Mtg, 10-24 X 2.188, (2)   (Replaces: 316513301)			Immediately	$ 16.48
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316433607		Label, Anti-tip		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316525700		Screw, Hinge Mtg, 10-32 X 5/16, (4)				$ 8.56
