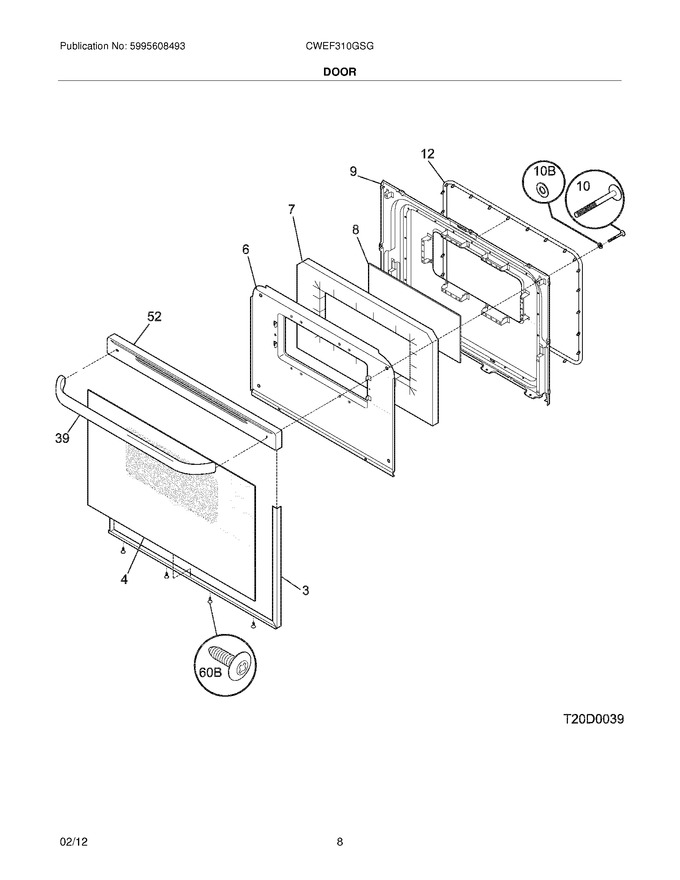

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935347 | Trim Kit-door,3 Sided ,white ,w/tape |
|
$ 62.90 | |||||
| 4 | 316202803 | Glass,oven Door ,white ,outer (Replaces: 316202823) |
|
$ 352.64 | |||||
| 6 | 316222703 | Shield,oven Door ,wool (Replaces: 316222709) |
|
$ 78.67 | |||||
| 7 | 316236802 | Insulation,oven Door |
|
$ 41.63 | |||||
| 8 | 316088600 | Glass,oven Door ,inner |
|
$ 85.52 | |||||
| 9 | 316230628 | Liner,oven Door |
|
$ 128.90 | |||||
| 10 | 316001014 | Screw,waf Hd Sq `10-24 X 1.6 ,handle ,(2) |
|
Immediately | $ 47.03 | ||||
| 12 | 316239700 | Seal,oven Door |
|
Immediately | $ 152.43 | ||||
| 39 | 5304530039 | Handle,oven Door ,white (Replaces: 316456901) |
|
Immediately | $ 167.43 | ||||
| 52 | 316491200 | Cap,door Trim ,white |
|
Immediately | $ 119.83 | ||||
| 10B | 316008401 | Washer,3/4 Od X 1/4 Id ,steel |
|
$ 11.34 | |||||
| 60B | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316433602 | Label,anti-tip |
|
- |
