01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Optional Parts

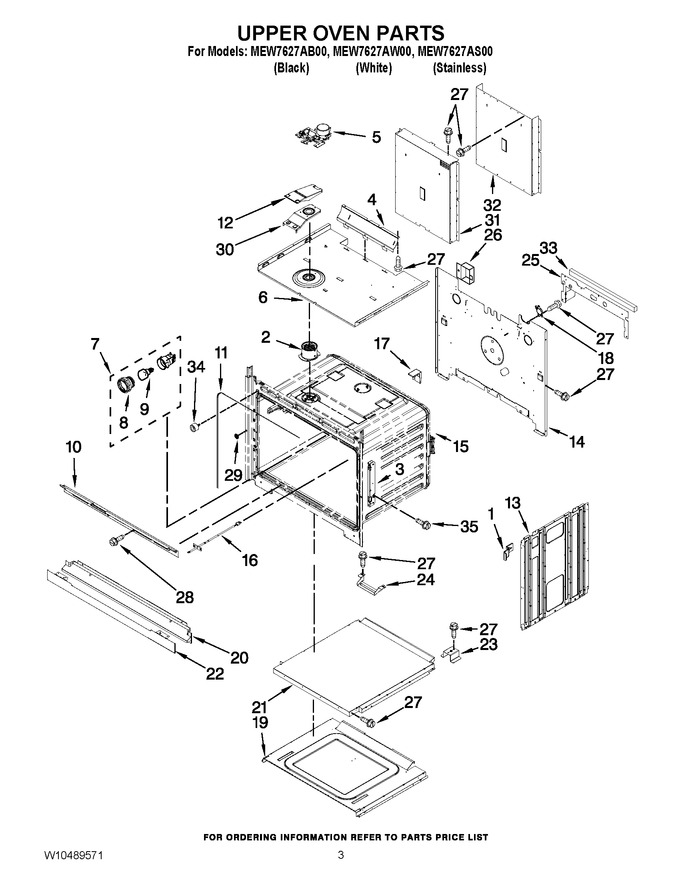

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10347649		Spacers, Front				$ 12.87
2	W11240525		Tube, Cavity Tube   (Replaces: W10282946)				$ 21.89
3	W11613828		Receiver, Hinge   (Replaces: W10282975)			Immediately	$ 49.28
4	W10351258		Bracket, Blower Deflector		Appelez-nous	-
5	W10883049		Latch, Motorized Blower Deflector   (Replaces: W10314880)			Immediately	$ 275.81
6	W10282981		Chassis, Top		Appelez-nous	-
7	WPW10734063		Indicator, Light   (Replaces: W10260262)				$ 76.33
8	WPW10412722		Lens, Light   (Replaces: W10412722)			Immediately	$ 16.84
9	WPW10412711		Bulb, Light   (Replaces: W10412711)			Immediately	$ 20.35
10	W10283037		Vent, Top 27`` Double			Immediately	$ 127.13
11	W10856596		Gasket   (Replaces: W10282961)			Immediately	$ 94.73
12	W10616810		Exhaust, Vent Cover   (Replaces: W10282985)				$ 59.96
13	W10318190		Chassis, Side				$ 117.20
14	W10282991		Chassis, Back		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	WP74008369		Sensor   (Replaces: 7430P043-60)			Immediately	$ 119.65
17	WPW10392683		Bumper, Rail   (Replaces: W10392683)				$ 8.68
18	WP4449751		Thermostat   (Replaces: 4449751)			Immediately	$ 100.66
19	W10282901		Chassis, Base				$ 177.43
20	WPW10327375		Assembly, Bottom Vent (black)   (Replaces: W10327375)				$ 373.71
20	WPW10351280		Assembly, Bottom Vent (stainless)   (Replaces: W10351280)				$ 226.41
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 188.61
22	WPW10327378		Trim, Bottom Vent (stainless)   (Replaces: W10327378)			Immediately	$ 192.66
22	WPW10351237		Trim, Bottom Vent (black)   (Replaces: W10351237)				$ 127.69
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Chassis, Bottom Duct Spacer				$ 58.73
25	W10351283		Bracket, U-shape		Appelez-nous	-
26	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
28	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
29	W10759525		Grommet, Front Frame   (Replaces: W10283016)				$ 7.04
30	W10616809		Base, Exhaust Vent   (Replaces: W10282984)				$ 27.63
31	W10318196		Chassis, Back Duct Upper				$ 187.62
32	W10283000		Chassis, Back Duct		Appelez-nous	-
33	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 6.98
34	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 9.44
35	WPW10254050		Screw   (Replaces: W10254050)				$ 7.30
NI	W11688333		Insulation, Cavity   (Replaces: W10282945)		Appelez-nous	-
NI	W10282943		Insulation, Wrap		Appelez-nous	-
