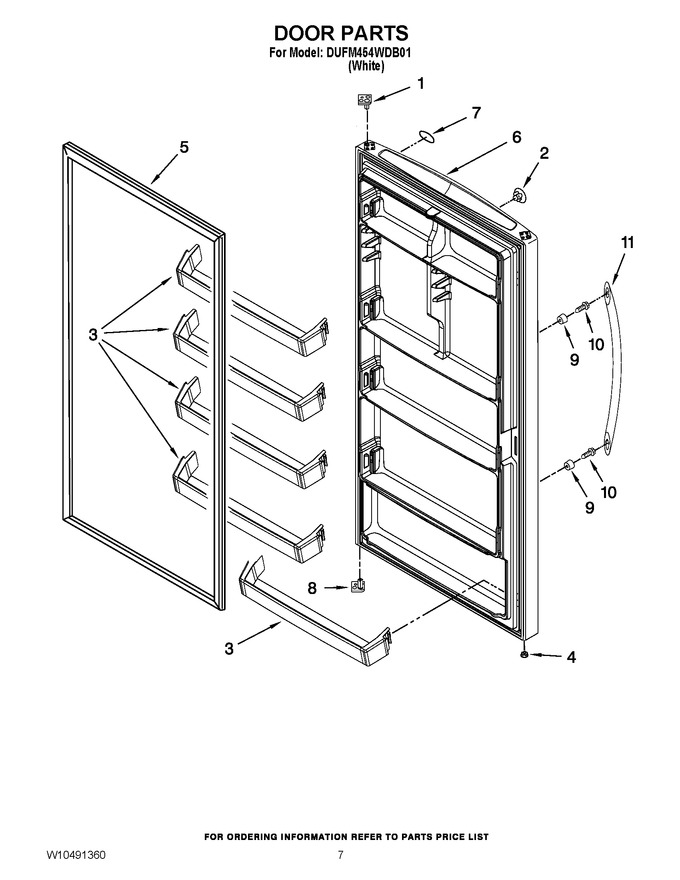

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2-81124-001		Stop, Door (top) (natural)				$ 31.15
2	WP2189000		Plug-handle   (Replaces: 1-60121-001)			Immediately	$ 6.66
3	4-65427-001		Rail, Door (5)				$ 37.33
4	3-24898-007		Vent Plug				$ 9.72
5	4-65151-601		Gasket, Door		Appelez-nous	-
6	W10340674		Door Assembly (includes Interior Liner)		Appelez-nous	-
7	3-35752-001		Nameplate		Appelez-nous	-
8	2-81124-001		Stop, Door (bottom ) (natural)				$ 31.15
9	3-65447-001		Bushing, Handle				$ 14.86
10	W11772394		Screw   (Replaces: 3-24004-091)			Immediately	$ 10.94
11	3-82597-002		Handle Assembly				$ 76.51
