SELECT A DIAGRAM

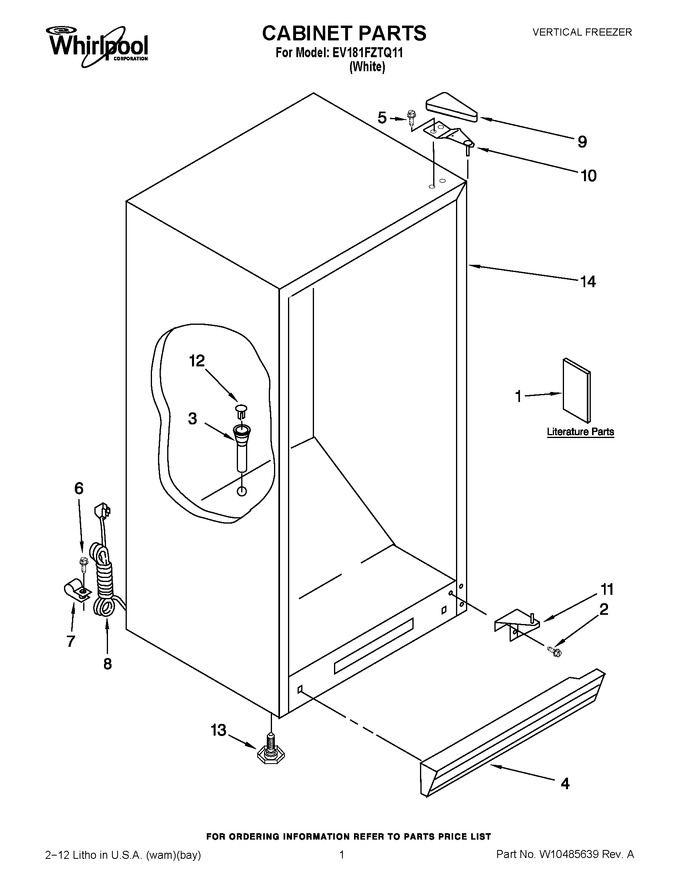

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10455646		Energy Label/tag		Appelez-nous	-
1	W10326799		Owners Manual		Appelez-nous	-
2	WP8204624		Screw   (Replaces: 1-80271-103)				$ 14.99
3	2-81437-002		Grommet, Drain		Appelez-nous	-
4	WP4-60461-005		Grille   (Replaces: 4-60461-005)				$ 100.70
5	WP8204624		Screw   (Replaces: 1-80271-103)				$ 14.99
6	681390		Screw   (Replaces: 1-80257-102)				$ 11.75
7	1-80231-101		Clamp, Tube		Appelez-nous	-
8	4-82399-001		Cord, Power				$ 52.24
9	3-80838-003		Hinge Cover				$ 4.50
10	2-81016-105		Hinge, Top				$ 37.06
11	4-82693-002		Hinge, Bottom				$ 72.12
12	WR2M4101		Drain Plug   (Replaces: 1-80860)		Appelez-nous	-
13	WP3-82710-001		Leg, Leveler   (Replaces: 3-82710-001)			Immediately	$ 18.29
14	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
