View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Burner
07 - Body
09 - Top/drawer
11 - Door
12 - Wiring Diagram
13 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

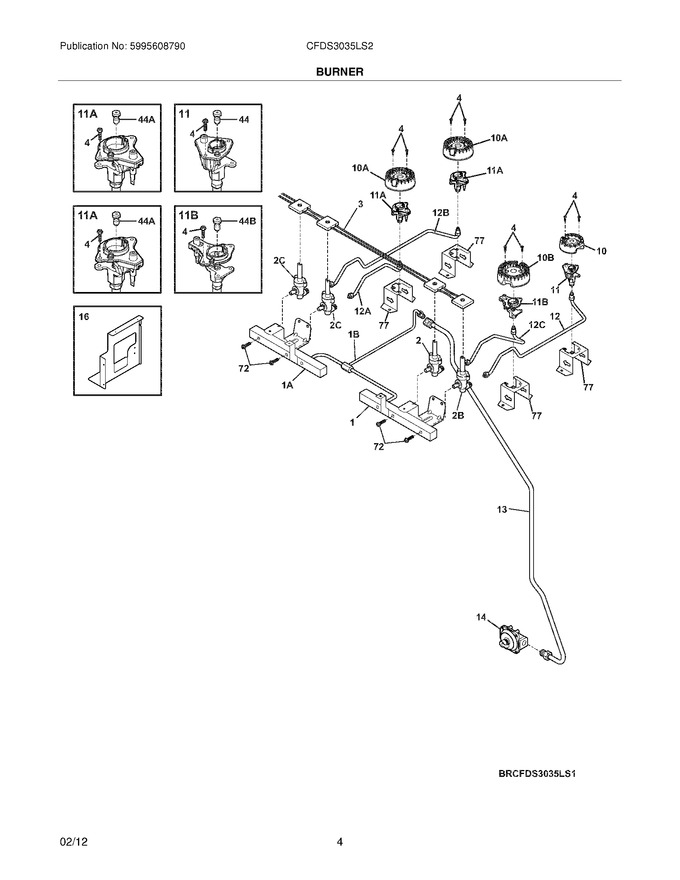

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318305600 | Manifold,right Side |
|
$ 129.70 | |||||
| 4 | 316240600 | Screw,hex Wash ,6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 12.13 | ||||
| 16 | 318590003 | Panel,regulator Mtg. |
|
$ 51.50 | |||||
| 72 | 316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| 77 | 318920300 | Bracket,burner Mtg ,(4) |
|
- | |||||
| 1A | 318305601 | Manifold,left Side |
|
$ 105.42 | |||||
| F10 | 316438200 | Burner,sealed ,5k |
|
Immediately | $ 56.70 | ||||
| F10A | 316558300 | Burner,sealed ,9.5k |
|
Immediately | $ 52.45 | ||||
| F10B | 316438600 | Burner,sealed ,14k |
|
Immediately | $ 79.80 | ||||
| F11 | 316540800 | Ignitor/orifice Assy.,top Burner ,5k ,w/holder |
|
$ 11.20 | |||||
| F11A | 316540700 | Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder |
|
$ 11.15 | |||||
| F11B | 316543206 | Ignitor/orifice Assy.,top Burner ,14k ,w/holder |
|
$ 146.71 | |||||
| F12 | 318916801 | Tube,burner Supply ,rh Rear |
|
$ 39.69 | |||||
| F12A | 318916501 | Tube,burner Supply ,lh Front |
|
- | |||||
| F12B | 318916601 | Tube,burner Supply ,lh Rear |
|
- | |||||
| F12C | 318916701 | Tube,burner Supply ,rh Front |
|
$ 47.03 | |||||
| F13 | 318305110 | Tube,regulator ,to Manifold |
|
$ 105.84 | |||||
| F14 | 318122715 | Regulator,pressure |
|
- | |||||
| F1B | 318305410 | Tube,manifold ,3/8 ,interconnect |
|
$ 294.13 | |||||
| F2 | 318233930 | Valve,top Burner ,14000 Btu |
|
$ 118.32 | |||||
| F2B | 318233900 | Valve,top Burner ,5000 Btu |
|
$ 161.53 | |||||
| F2C | 318233910 | Valve,burner ,front ,bridge |
|
$ 132.56 | |||||
| F3 | 318232668 | Wiring Harness,w/igntr Switch |
|
$ 90.83 | |||||
| F44 | 316527504 | Orifice,burner ,5k |
|
$ 22.68 | |||||
| F44A | 316527500 | Orifice,top Burner ,9.5k |
|
$ 21.40 | |||||
| F44B | 316527513 | Orifice,top Burner ,14k |
|
$ 22.05 | |||||
| FNI | 318199776 | Wiring Harness,ignitor |
|
$ 54.60 | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 316519700 | Screw,no.8-18 X 3/8 ,(10) (Replaces: 5304454881) |
|
$ 10.02 | |||||
| NI | 318186911 | Lp Conversion Kit |
|
$ 72.55 | |||||
| NI | 5303323129 | Screw,8 X 0.750 |
|
- |
