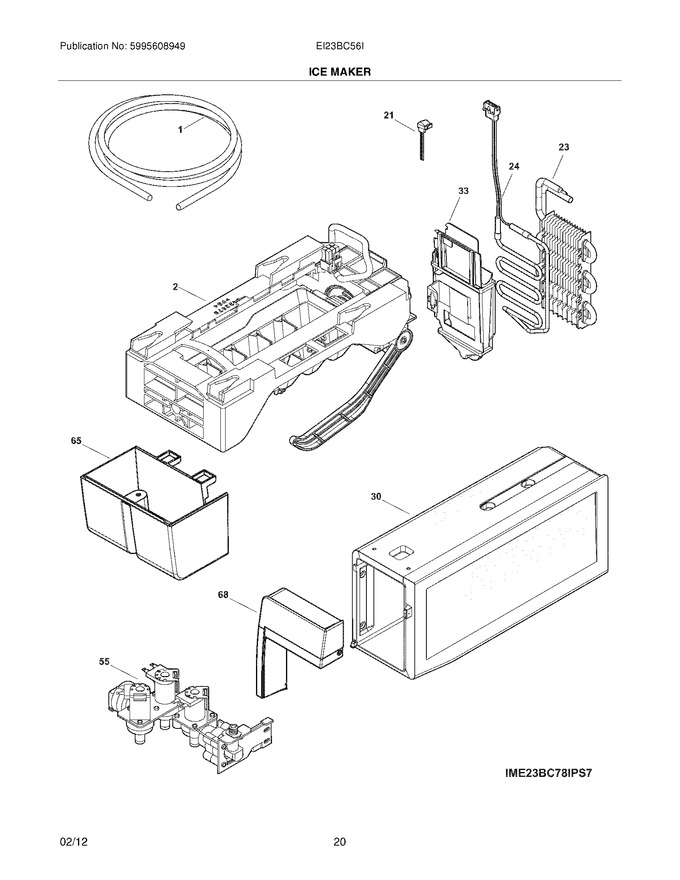

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water Inlet,5/16 - 59`` ,yellow ,cd |
|
$ 20.56 | |||||
| 30 | 242093501 | Cover,icmkr & Bucket (Replaces: 242142202) |
|
$ 168.69 | |||||
| 33 | 242094401 | Housing-evaporator |
|
$ 6.39 | |||||
| 65 | 242145902 | Cover-wiring |
|
- | |||||
| 68 | 242095002 | Cover,-front ,bucket Trim |
|
$ 94.82 | |||||
| F2 | 243297613 | Ice Maker,complete ,115 V (Replaces: 243297603) |
|
Immediately | $ 117.66 | ||||
| F21 | 5303918568 | Thermostat-defrost,defrost ,icemaker Evap |
|
$ 91.43 | |||||
| F23 | 5303918567 | Evaporator Kit |
|
Immediately | $ 309.58 | ||||
| F24 | 242094802 | Heater-defrost |
|
Immediately | $ 113.92 | ||||
| F55 | 242252702 | Valve-water,triple Solenoid (Replaces: 241734302) |
|
Immediately | $ 132.71 | ||||
| FNI | 5303918446 | Heat Exchanger,icemaker |
|
$ 401.86 | |||||
| NI | 242095402 | Gasket-evap Housing,.250x.250x3.300 |
|
- | |||||
| NI | 242095403 | Gasket-evap Housing,.250x.250x7.750 |
|
- | |||||
| NI | 5303918784 | Gasket-evap Housing,.250x.250x5.250 (Replaces: 242095404) |
|
Immediately | $ 122.75 | ||||
| NI | 242095405 | Gasket-evap Housing,.250x.250x6.600 |
|
- | |||||
| NI | 242095408 | Gasket-evap Housing,.250x1.00x6.600 |
|
- | |||||
| NI | 242095425 | Gasket-evap Housing (Replaces: 242095409) |
|
$ 10.31 | |||||
| NI | 218709101 | Screw,hex Head ,10-32 X 0.500 |
|
$ 6.38 | |||||
| NI | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NI | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| NI | 240396801 | Clamp,tube/wiring ,nylon ,black/natural |
|
$ 19.13 | |||||
| NI | 241641502 | Screw |
|
$ 8.51 | |||||
| NI | 5303918571 | Tube-water,ice Mold Fill ,black ,extension (Replaces: 241844403) |
|
$ 164.24 | |||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 5303918484 | Chute-ice (Replaces: 242105401) |
|
$ 30.47 | |||||
| NI | 5303918571 | Kit-water Fill Chute |
|
$ 164.24 | |||||
| NI | 218976425 | Tube-water Inlet,51.00`` ,brown/tan |
|
$ 101.35 | |||||
| NI | 241920106 | Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| NI | 241964705 | Tube-water,1/4 - 24`` ,green |
|
$ 10.55 | |||||
| NI | 241965906 | Tube-water,5/16 - 67`` ,natural |
|
Immediately | $ 24.10 | ||||
| NI | 241695906 | Screw,10-16ab X 0.50 |
|
$ 19.13 | |||||
| NI | 242095406 | Gasket |
|
Immediately | $ 18.17 | ||||
| NI | 5303918784 | Gasket (Replaces: 242095407) |
|
Immediately | $ 122.75 | ||||
| NI | 5303918784 | Gasket,.4x .75x 16.00`` (Replaces: 242124801) |
|
Immediately | $ 122.75 | ||||
| NI | 5303918784 | Gasket,.9x .75x 10.75`` (Replaces: 242124802) |
|
Immediately | $ 122.75 | ||||
| NI | 5303918784 | Gasket,housing Funnel ,2.69x 3.05x .25 ,top,w/hole (Replaces: 242146001) |
|
Immediately | $ 122.75 |
