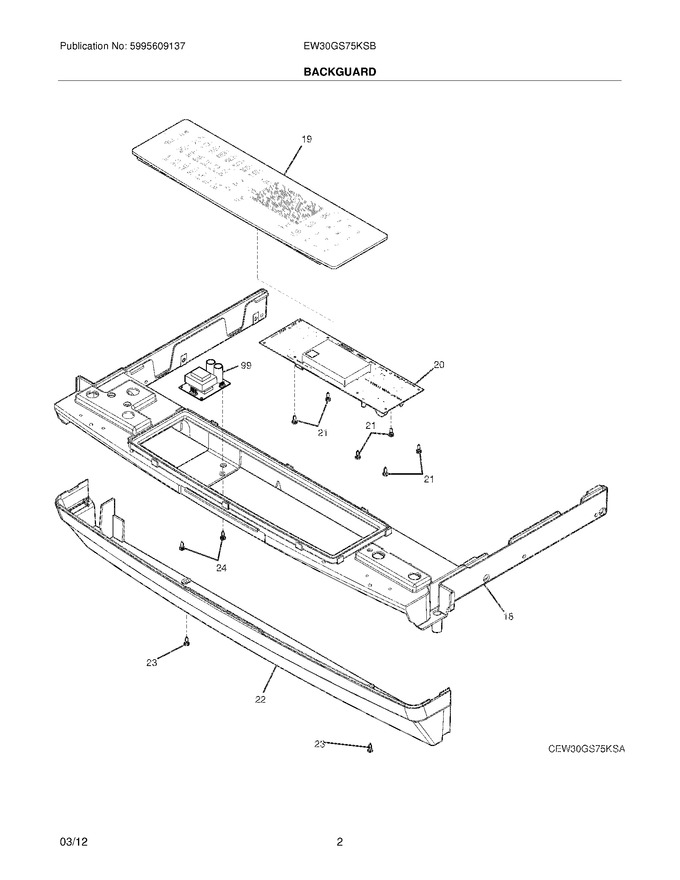

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	318900303		Subframe,control				$ 253.03
21	131892100		Screw,control Mtg ,6-32 X .25 ,(5)   (Replaces: 316524400)		Appelez-nous	-
22	318905005		Panel,service ,stainless				$ 450.32
23	5304401361		Screw,8-18 X 0.750 ,black				$ 9.71
24	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
F19	318387131		Control Assembly,glass ,black ,w/interface				$ 1,596.15
F20	316576705		Controller,electronic ,es631				$ 430.92
F99	316535201		Board,power Supply ,8v				$ 349.42
FNI	318578324		Harness,wiring ,timer		Appelez-nous	-
FNI	318578309		Harness,wiring ,power Supply		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02

    View Diagram in Separate Window       Print Part List
