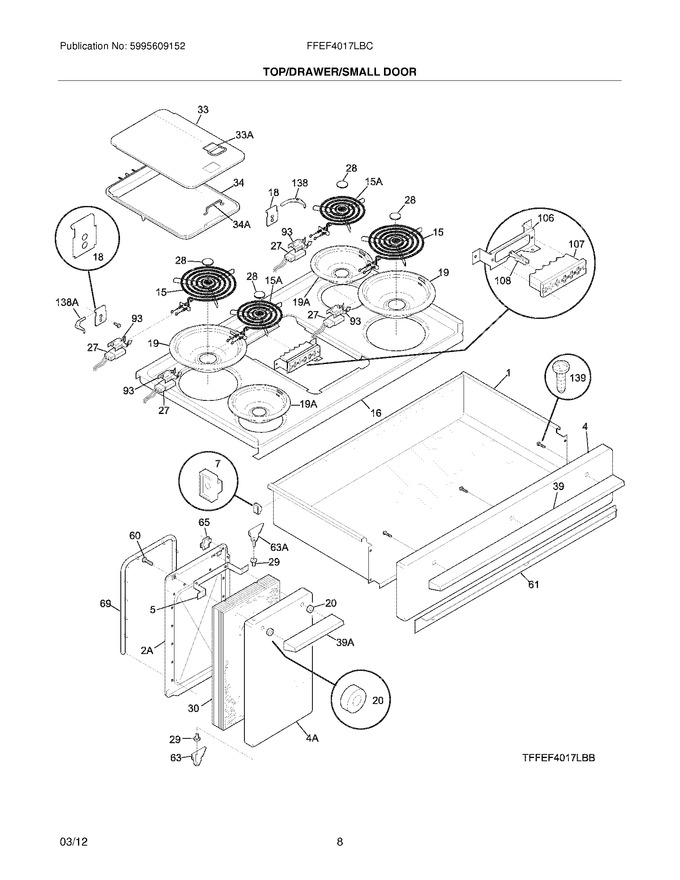

07 - Top/drawer/small Door


09 - Oven Door


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer-utility		Appelez-nous	-
4	3201577		Panel-drawer, Black		Appelez-nous	-
5	318014500		Spacer,door Handle		Appelez-nous	-
7	5303326236		Guide,drawer		Appelez-nous	-
16	5304400734		Main Top		Appelez-nous	-
18	318186401		Retainer,hinge Pin		Appelez-nous	-
20	318577200		Spacer,handle		Appelez-nous	-
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
29	318141800		Spacer,hinge Pin ,upper/lower				$ 14.49
30	318285031		Insulation,oven Door		Appelez-nous	-
33	5304400735		Cover-griddle		Appelez-nous	-
34	5304400770		Griddle		Appelez-nous	-
39	318185901		Handle,drawer ,black		Appelez-nous	-
60	3051070		Screw,hex Washer Head ,10-24 X 0.438 ,special		Appelez-nous	-
61	318107700		Toeplate		Appelez-nous	-
63	318024508		Hinge,door ,lwr Small Oven ,lower				$ 133.72
65	318090220		Strike-door				$ 57.04
69	318053300		Seal,door ,small Oven		Appelez-nous	-
93	318366410		Support,terminal Block ,(4)				$ 13.47
106	318180200		Bracket,receptacle		Appelez-nous	-
108	318395200		Terminal,griddle		Appelez-nous	-
138	5301315631		Pin,hinge ,rs Cooktop		Appelez-nous	-
139	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
2A	318048211		Liner,inner Door ,small Oven		Appelez-nous	-
33A	5301313051		Handle-cover		Appelez-nous	-
34A	318355400		Handle-griddle		Appelez-nous	-
39A	318185903		Handle,small Oven Door ,black		Appelez-nous	-
4A	318009307		Panel-oven Door, Small		Appelez-nous	-
63A	318024509		Hinge,door ,upr Small Oven				$ 118.28
F107	318395400		Receptacle,giddle Element ,w/terminals		Appelez-nous	-
F138	3051658		Pin,hinge ,ls Cooktop		Appelez-nous	-
F15	316442301		Element,surface ,8``/large ,2100w			Immediately	$ 44.39
F15A	318372211		Element-surface,small/6 Inch ,1500w   (Replaces: 316439801)			Immediately	$ 45.14
F19	316048413		Pan-surface Element,chrome ,large/8 Inch			Immediately	$ 9.85
F19A	316048414		Pan-surface Element,chrome ,small/6 Inch			Immediately	$ 16.11
F27	318368615		Terminal Block,surface Element ,24`` ,yellow Leads		Appelez-nous	-
F27	318368613		Terminal Block,surface Element ,27`` ,brown Leads		Appelez-nous	-
F27	318368614		Terminal Block,surface Element ,22`` ,white Leads		Appelez-nous	-
F27	318368616		Terminal Block,surface Element ,32`` ,orange 1eads		Appelez-nous	-
FNI	318232312		Wiring Harness,griddle ,main		Appelez-nous	-
FNI	318232315		Wiring Harness,griddle ,2 Wire		Appelez-nous	-
FNI	318232314		Wiring Harness,cooktop		Appelez-nous	-
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5303321106		Plug-button				$ 11.60
NI	3201899		Washer,flat		Appelez-nous	-
NI	5303317975		Screw,10 X 1/2		Appelez-nous	-
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	5303323146		Rivet		Appelez-nous	-
NI	318086002		Washer,flat ,steel		Appelez-nous	-
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	318165900		Spacer,fiber,(2)		Appelez-nous	-
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5304400790		Plug		Appelez-nous	-
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
