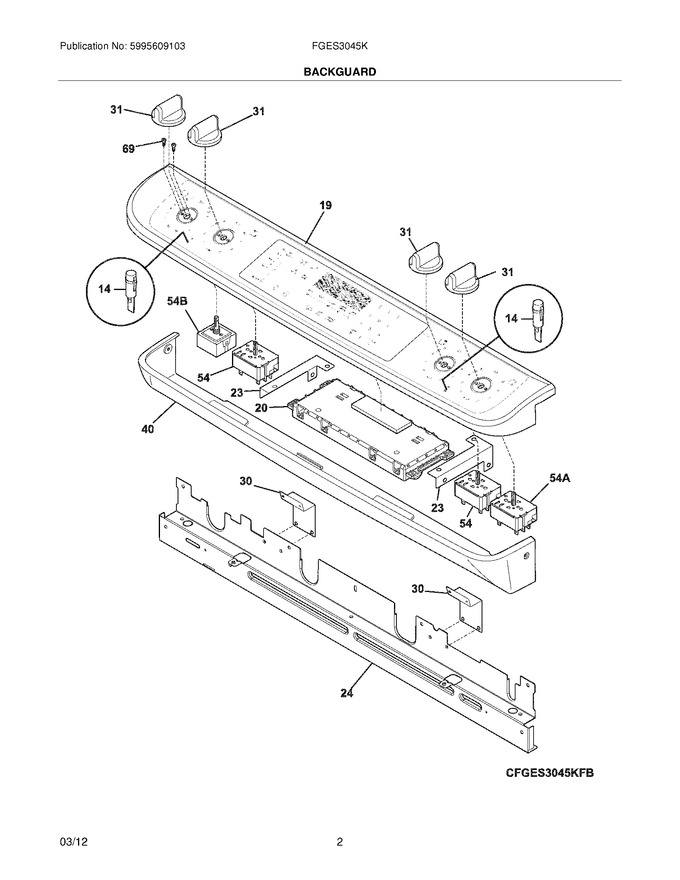

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	318921300		Bracket,control Mtg ,(2)				$ 17.64
24	318913116		Trim,vent ,black ,upper				$ 91.72
30	318928502		Bracket,control Panel ,rear ,(2)   (Replaces: 318928500)				$ 15.60
31	316564404		Knob,control ,black		Appelez-nous	-
40	318912905		Panel,service ,black				$ 301.40
69	5304401837		Screw,8-32 X 5/16		Appelez-nous	-
F14	318293901		Light,indicator ,125v ,(2)				$ 53.66
F19	318922127		Panel Assembly,control ,black ,w/overlay		Appelez-nous	-
F20	316560140		Controller,electronic ,es530w0				$ 363.97
F54	318293818		Switch,surface Element ,small ,(2)			Immediately	$ 90.30
F54A	318293827		Switch,surface Element ,large			Immediately	$ 90.82
F54B	318191024		Switch,infinite ,dual			Immediately	$ 92.38
FNI	318228880		Harness,wiring ,main ,backguard		Appelez-nous	-
FNI	318224869		Harness,wiring ,timer		Appelez-nous	-
FNI	318231880		Harness,wiring ,jumper				$ 14.18
NI	5304453707		Screw,8-18 X 1/2			Immediately	$ 15.92
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
