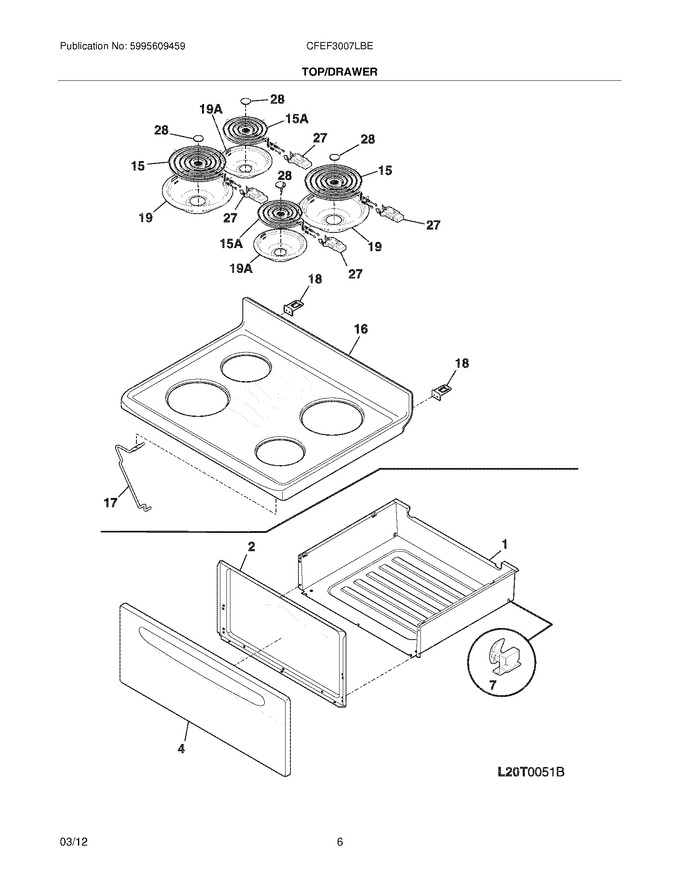

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304511288		Liner,drawer   (Replaces: 316284800)				$ 57.64
4	316231328		Panel,drawer ,black   (Replaces: 316231306)				$ 66.18
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316202387		Main Top,black				$ 448.19
17	316057601		Rod,support ,main Top				$ 64.49
18	316580800		Bracket-hinge,main Top			Immediately	$ 9.86
19	A316222301		Pan-surface Element,large ,black ,(2)   (Replaces: 318067075)			Immediately	$ 12.53
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
19A	A316222201		Pan-surface Element,small ,black ,(2)   (Replaces: 318067076)			Immediately	$ 14.64
F15	316442300		Element,surface ,8`` ,large   (Replaces: 318372213)			Immediately	$ 59.16
F15A	318372210		Element,surface ,6`` ,small			Immediately	$ 20.21
FNI	316580400		Harness,wiring ,surface Units				$ 184.37
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	5308014215		Screw`6-20 X 0.312				$ 2.28

    View Diagram in Separate Window       Print Part List
