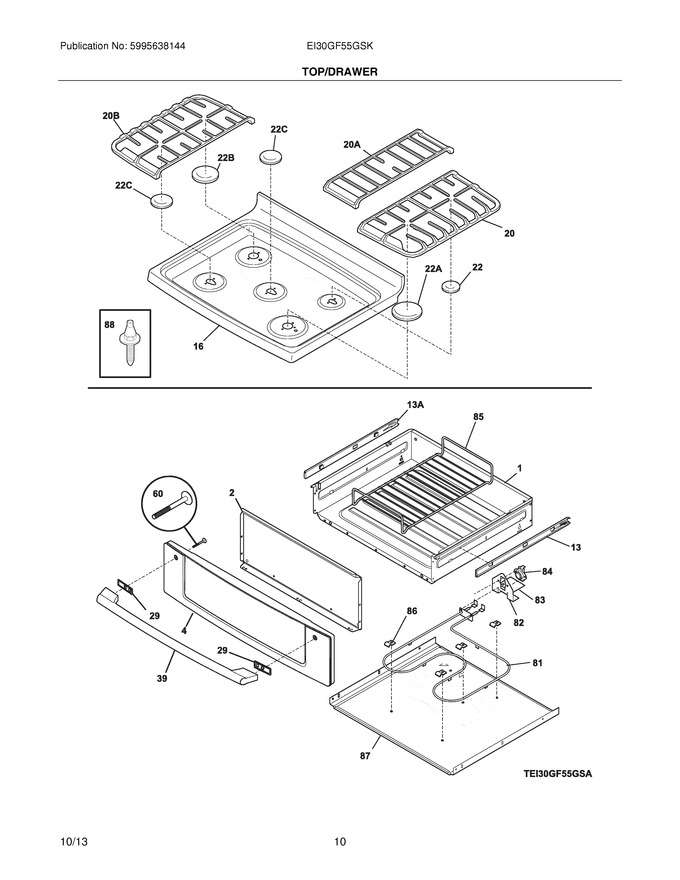

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408902		Drawer,warmer				$ 130.46
2	316502901		Liner,drawer		Appelez-nous	-
4	316517107		Panel Assembly,drawer Glass ,outer ,w/trim & Tape				$ 232.52
13	316415000		Glide,warmer ,inner Rh				$ 58.82
16	316506856		Maintop,assembly ,black		Appelez-nous	-
20	316537800		Grate,double Burner ,lh				$ 246.02
22	5304508441		Cap,5k Burner ,matte ,black   (Replaces: 316261704)			Immediately	$ 35.04
29	316505401		Spacer,handle ,gray ,(2)				$ 18.17
39	241881301		Handle,door ,stainless				$ 170.06
60	5304507924		Screw,handle Mtg ,10-24 X 2.188 ,(2)   (Replaces: 316513301)			Immediately	$ 16.48
82	316093200		Bracket,element Mtg		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093502		Thermo Disc,warmer Drawer				$ 51.03
85	807328301		Rack,warmer Drawer   (Replaces: 316425900)				$ 87.21
86	316095800		Clip-hold Down				$ 9.93
87	316091900		Base,warmer Drawer				$ 221.55
88	316099500		Pin,guide ,(2)				$ 6.53
13A	316415001		Glide,warmer ,inner Lh			Immediately	$ 58.82
20A	316537900		Grate,burner ,center				$ 227.28
20B	316538000		Grate,double Burner ,rh				$ 242.06
22A	5304508468		Cap,17k Burner ,black   (Replaces: 316262104)				$ 49.45
22B	5304508443		Cap,14k Burner ,matte ,black   (Replaces: 316262004)			Immediately	$ 46.01
22C	5304508442		Cap,9.5k Burner ,matte ,black   (Replaces: 316261804)			Immediately	$ 36.55
F81	316437300		Element,warmer Drawer				$ 106.17
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304516184		Harness,warm Base   (Replaces: 316525623)				$ 28.51
