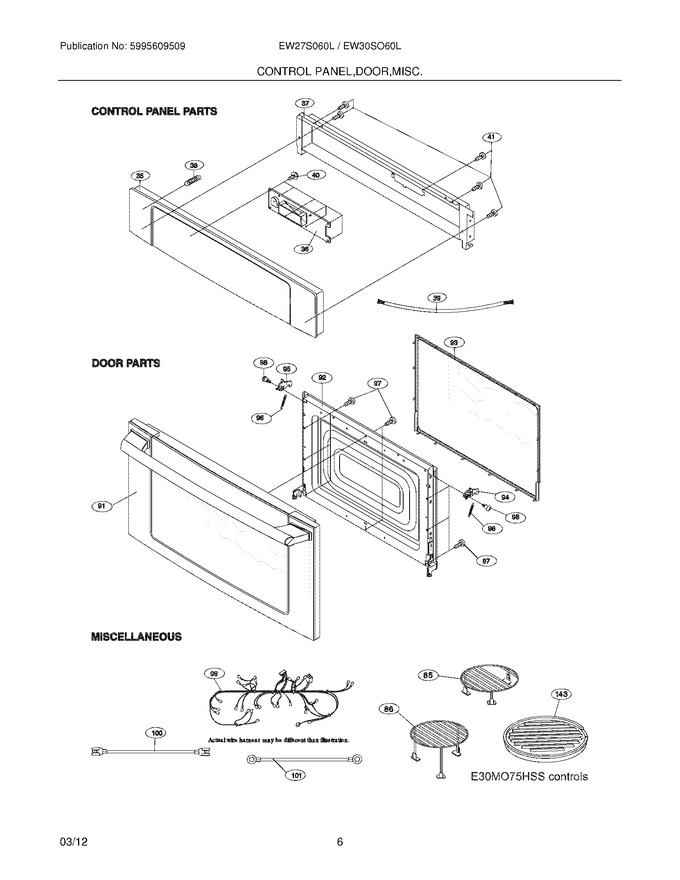

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
37	5304470558		Bracket,control Mount				$ 169.39
38	5304470560		Spring,grounding				$ 15.08
40	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
41	5304451517		Screw,4 Mm X 8 Mm				$ 17.35
85	5304461194		Rack Assembly,broiling Trivit ,low		Appelez-nous	-
86	5304461195		Rack Assembly,baking ,high				$ 122.39
91	5304470577		Frame,outer Door ,with Handle		Appelez-nous	-
92	5304470578		Panel,inner Door				$ 351.54
93	5304470579		Frame,inner Door ,choke Cover				$ 87.48
94	5304491054		Latch Head,right Side   (Replaces: 5304470580)				$ 54.58
95	5304490142		Latch Head,left Side   (Replaces: 5304470581)			Immediately	$ 58.56
96	5304484903		Spring,latch Head				$ 26.09
97	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
98	5304470583		Screw				$ 13.01
143	5304461261		Rack,bacon				$ 180.03
F100	5304461198		Wire,high Voltage ,b		Appelez-nous	-
F101	5304461199		Wire,ground ,cooling Fan				$ 25.52
F35	5304485890		Touch Control,key Pad		Appelez-nous	-
F36	5304470557		Display Board,cpu				$ 268.21
F39	5304470561		Wiring Harness,power Supply		Appelez-nous	-
F99	5304480652		Harness,wiring ,main				$ 221.84
