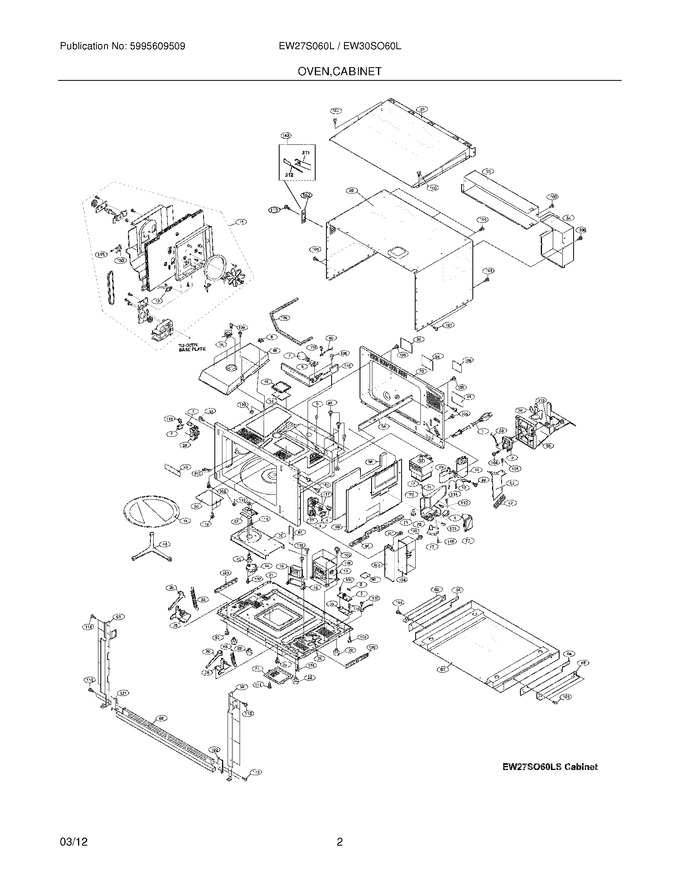

03 - Oven,cabinet


05 - Control Panel,door,miscellaneous


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	5304464198		Lamp,oven Light			Immediately	$ 39.04
20	5304470542		Cabinet,outer Casing				$ 245.24
21	5304470734		Base,chassis ,w/motor Cover		Appelez-nous	-
22	5304461127		Foot,cabinet ,(4)				$ 15.54
23	5304470544		Panel,cabinet Back		Appelez-nous	-
24	5304461129		Holder,capacitor		Appelez-nous	-
25	5304470545		Hinge,oven Door ,left				$ 180.73
26	5304470546		Hinge,oven Door ,right				$ 175.68
27	5304470547		Latch Hook,right Side			Immediately	$ 51.32
28	5304470548		Latch Hook,left Side			Immediately	$ 51.03
29	5304470549		Cam,door ,left				$ 86.42
30	5304470550		Cam,door ,right			Immediately	$ 91.58
32	5304470552		Cover,front		Appelez-nous	-
33	5304470553		Duct,b		Appelez-nous	-
34	5304470554		Duct,c		Appelez-nous	-
43	5304480642		Support,turntable				$ 143.96
44	5304470563		Tray,turntable ,glass				$ 238.86
45	5304461155		Frame,light Lens		Appelez-nous	-
46	5304470564		Bracket,mounting ,transformer		Appelez-nous	-
47	5304461157		Cushion		Appelez-nous	-
48	5304461158		Duct Assembly,steam Release		Appelez-nous	-
49	5304480644		Coupling,turntable				$ 138.80
50	5304461165		Cover,waveguide				$ 232.99
51	5304461167		Lens,light		Appelez-nous	-
53	5304461174		Duct,cooling Fan		Appelez-nous	-
54	5304461175		Support,chassis		Appelez-nous	-
55	5304461178		Bracket,noise Filter ,angle		Appelez-nous	-
56	5304461156		Cushion		Appelez-nous	-
57	5304461181		Guide,air ,magnetron		Appelez-nous	-
58	5304461182		Sheet,thermal ,protection		Appelez-nous	-
59	5304461183		Cover,thermal Sheet ,panel		Appelez-nous	-
61	5304470565		Trim,left Side		Appelez-nous	-
62	5304470566		Trim,right Side		Appelez-nous	-
63	5304470569		Duct,exhaust				$ 91.72
64	5304470570		Angle,bottom				$ 30.43
65	5304475717		Louver,inlet ,30 Inch		Appelez-nous	-
66	5304470572		Angle,shipping		Appelez-nous	-
67	5304451459		Bracket,turntable Mount		Appelez-nous	-
68	5304470573		Spring,door ,right Side				$ 189.42
69	5304470575		Spring,door ,left Side				$ 226.99
70	5304470576		Insulator,thermal Barrier		Appelez-nous	-
71	5304461159		Cam,damper		Appelez-nous	-
72	5304461160		Shaft,damper		Appelez-nous	-
73	5304461161		Door Assembly,damper				$ 73.71
74	5304461162		Duct,damper		Appelez-nous	-
75	5304461163		Cushion		Appelez-nous	-
78	5304461179		Cushion,damper Duct		Appelez-nous	-
90	5304440334		Label,caution-monitor		Appelez-nous	-
91	5304465314		Label,nhw Caution		Appelez-nous	-
93	5304451534		Label,user Caution ,french				$ 3.55
94	5304470585		Label,height Caution		Appelez-nous	-
95	5304440333		Label,caution-dhhs		Appelez-nous	-
97	5304471514		Label,menu		Appelez-nous	-
98	5303319636		Screw		Appelez-nous	-
99	5304451550		Screw,4 Mm X 8 Mm		Appelez-nous	-
100	5304502863		Screw,4 Mm X 8 Mm ,silver   (Replaces: 5304451552)				$ 10.85
101	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
102	5304461203		Screw,4mm X 10mm ,(6)		Appelez-nous	-
103	5303319641		Screw				$ 12.76
104	5304461209		Screw,4mm X 25mm ,(2)		Appelez-nous	-
105	5304470587		Screw		Appelez-nous	-
106	5304461215		Screw,4mm X 8mm ,(2)		Appelez-nous	-
107	5304470588		Screw				$ 9.93
108	5304461221		Screw,6mm X 14mm ,(4)		Appelez-nous	-
109	5304470589		Screw		Appelez-nous	-
110	5304470590		Nut,special		Appelez-nous	-
111	5304450253		Screw,4 Mm X 8 Mm				$ 14.89
112	5304461210		Screw,4mm X 6mm ,(3)		Appelez-nous	-
113	5304461204		Screw,4mm X 8mm ,(2)		Appelez-nous	-
114	5304461208		Screw,3mm X 14mm		Appelez-nous	-
115	5304461216		Screw,3mm X 6mm		Appelez-nous	-
116	5304470591		Lever,switch Actuator ,left				$ 55.67
117	5304470592		Lever,switch Actuator ,right				$ 46.61
118	5304461171		Guide,air ,rh		Appelez-nous	-
119	5304451470		Packing,silicon				$ 52.05
120	5304483932		Cushion		Appelez-nous	-
121	5304470593		Trim,decorative ,left Side		Appelez-nous	-
122	5304470594		Trim,decorative ,right Side		Appelez-nous	-
123	5304470735		Holder,power Board				$ 46.78
126	5304440346		Label,user Caution ,french				$ 34.73
128	5304461180		Cushion		Appelez-nous	-
129	5304482055		Cushion,side		Appelez-nous	-
162	5304451562		Bracket,oven Retainer ,anti-tip		Appelez-nous	-
163	5304451563		Anti-tip Kit,w/brackets ,tools,screws		Appelez-nous	-
311	318246000		Bracket,cabinet ,anti-tip		Appelez-nous	-
312	318246702		Tool,oven Release ,rh Key				$ 12.13
312	318246703		Tool,oven Release ,lh Key				$ 12.13
F1	5304470537		Power Cord,electric				$ 117.12
F10	5304485888		Transformer,power		Appelez-nous	-
F11	5304470539		Capacitor,high Voltage				$ 145.76
F12	5304474696		Rectifier,high Voltage   (Replaces: 5304461122)				$ 120.49
F124	5304485892		Power Board,printed Circuit				$ 339.36
F13	5304480636		Magnetron				$ 521.26
F130	5304451403		Thermal Cutout,top Heater				$ 146.71
F14	5304498736		Motor,turntable   (Replaces: 5304461124)				$ 104.62
F15	5304470541		Transformer,low Voltage				$ 225.14
F16	5304461125		Sensor Assembly,ah				$ 150.26
F17	5304485889		Motor,damper				$ 53.78
F18	5304483930		Convection Fan Assy		Appelez-nous	-
F19	5304483929		Thermistor				$ 80.80
F2	5304461109		Assembly,fuse & Switch ,monitor				$ 125.69
F3	5304498734		Filter,noise ,w/fuse Mount   (Replaces: 5304483928)			Immediately	$ 51.74
F311	5304438005		· Screw,6 X 1 ,black				$ 9.93
F311	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
F4	5304493153		Switch,interlock ,door Sensor   (Replaces: 5304440026)			Immediately	$ 83.38
F5	5304485887		Fuse,monitor				$ 64.07
F52	5304461173		Blade,fan				$ 44.65
F6	5304461114		Thermal Cut-out,convection/oven ,(2)				$ 181.73
F60	5304461196		Wiring Harness,thermistor		Appelez-nous	-
F8	5304463785		Lampholder,socket				$ 43.24
F89	5304461199		Wire,ground ,cooling Fan				$ 25.52
F9	5304461119		Motor,fan				$ 429.36
