SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Main Top

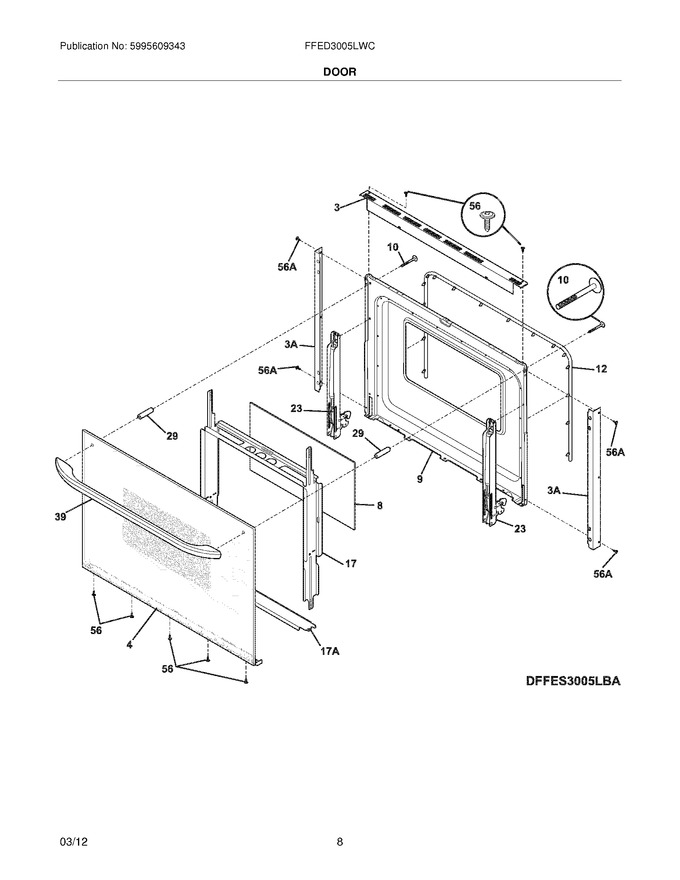

09 - Door


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318260201		Trim,oven Door ,black ,upper				$ 57.91
4	318403504		Glass Assy.,oven Door ,white ,outer ,w/trim		Appelez-nous	-
8	316427700		Glass,oven Door ,inner				$ 178.09
9	318411904		Liner,door ,oven		Appelez-nous	-
10	5304453593		Screw,handle Mtg.				$ 10.53
12	318053325		Seal,oven Door ,lower				$ 64.94
17	318300503		Bracket,glass				$ 46.15
23	318567112		Hinge,door ,oven ,(2)		Appelez-nous	-
29	318014405		Spacer,door		Appelez-nous	-
39	316545301		Handle,door/drawer ,white			Immediately	$ 130.85
56	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
17A	318300602		Bracket,glass ,lower				$ 53.24
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
56A	5304476599		Screw,8-18 X 3/8				$ 3.36
NI	5303300414		Spacer, Cork & Rubber				$ 13.18
NI	5304401361		Screw,8-18 X 0.750 ,black				$ 9.71
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	316221001		Label,anti-tip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
