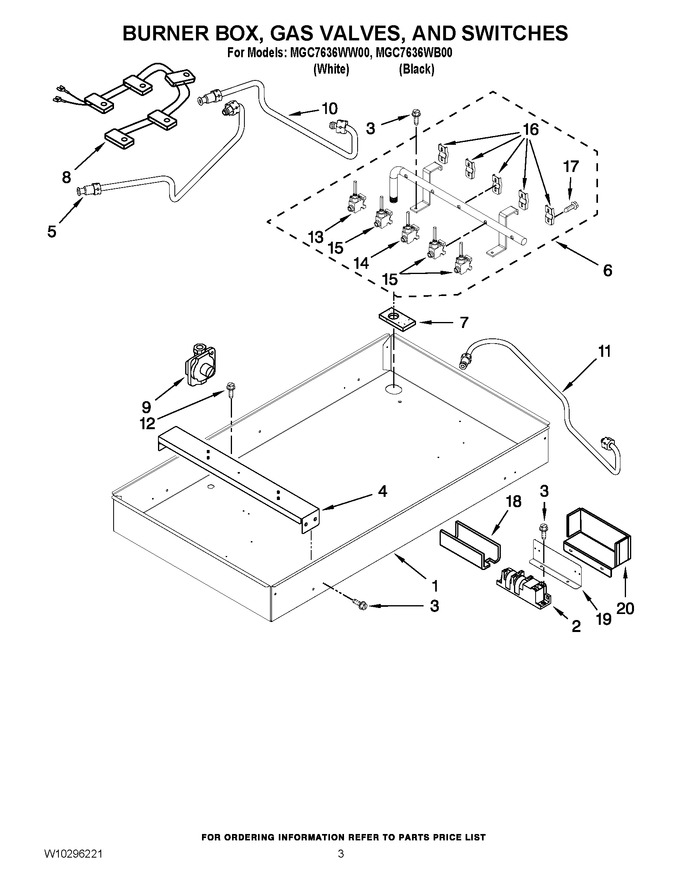

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10270270		Burner Box		Appelez-nous	-
2	WPW10110486		Spark Module   (Replaces: W10110489)				$ 285.33
3	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
4	3801F849-51		Bracket, Orifice Holder		Appelez-nous	-
5	7506P327-60		Tubing, Gas (lf/lr)		Appelez-nous	-
6	W10268437		Pipe, Manifold (includes Valves)		Appelez-nous	-
7	WP74001380		Seal, Manifold Pipe Inlet   (Replaces: 7208P024-60)				$ 58.91
8	W10268417		Harness & Switches				$ 83.43
9	W11087445		Regulator, Pressure   (Replaces: 7510P093-60)			Immediately	$ 177.34
10	7506P329-60		Tubing, Gas (center)		Appelez-nous	-
11	7506P374-60		Tubing, Gas (rr/rf)				$ 101.62
12	WP71001171		Screw, Ground   (Replaces: 7101P460-60)				$ 6.26
13	W10268441		Valve, Saddle		Appelez-nous	-
14	7502P557-60		Valve, Saddle				$ 229.39
15	7502P549-60		Valve, Saddle				$ 229.44
16	8405P028-60		Bracket, Valve		Appelez-nous	-
17	WPW10001160		Screw   (Replaces: 7101P550-60)				$ 8.86
18	W10244689		Insulation,spark		Appelez-nous	-
19	W10319059		Bracket, Spark   (Replaces: W10268387)		Appelez-nous	-
20	W10268420		Shield, Spark		Appelez-nous	-
