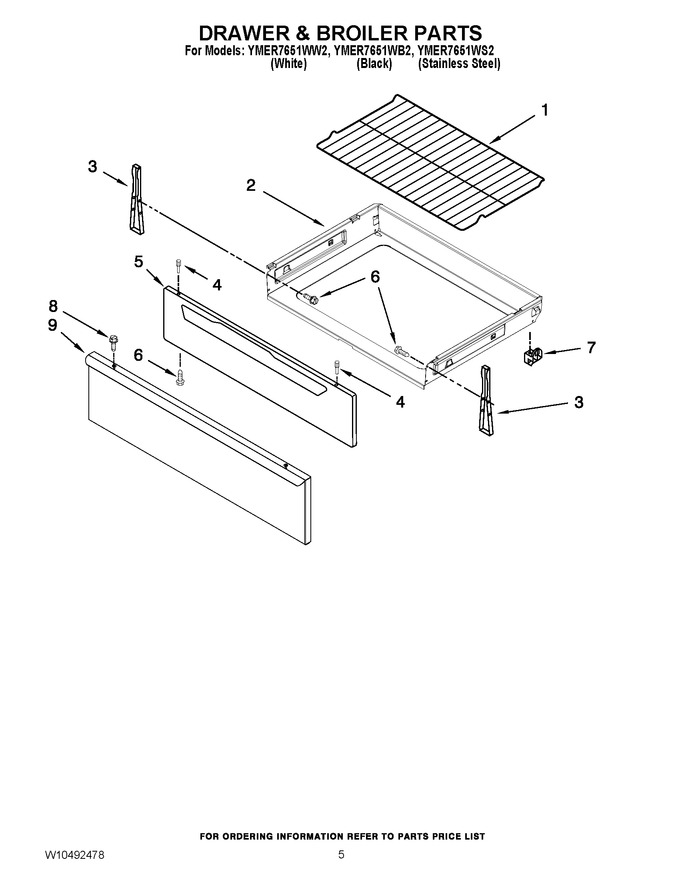

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 42.16 | ||||
| 2 | W10813962 | Drawer, Storage (Replaces: W10300032) |
|
Immediately | $ 124.34 | ||||
| 3 | WPW10462912 | Brkt-mntg, Drawer (Replaces: W10462912) |
|
Immediately | $ 114.65 | ||||
| 4 | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 9.49 | ||||
| 4 | WP3196813 | Rivet, Push (black) (Replaces: 3196813) |
|
Immediately | $ 9.60 | ||||
| 5 | W11230488 | Panel, Drawer Frnt (black) (Replaces: 8053341) |
|
$ 182.09 | |||||
| 5 | W11219377 | Panel, Drawer Frnt (white) (Replaces: 8053339) |
|
$ 182.21 | |||||
| 6 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 7 | W10763667 | Glide, Drawer (Replaces: W10317899) |
|
Immediately | $ 96.91 | ||||
| 8 | WPW10031790 | Screw (stls. Model) (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 9 | W10237657 | Panel(stls.model) |
|
$ 116.43 |
