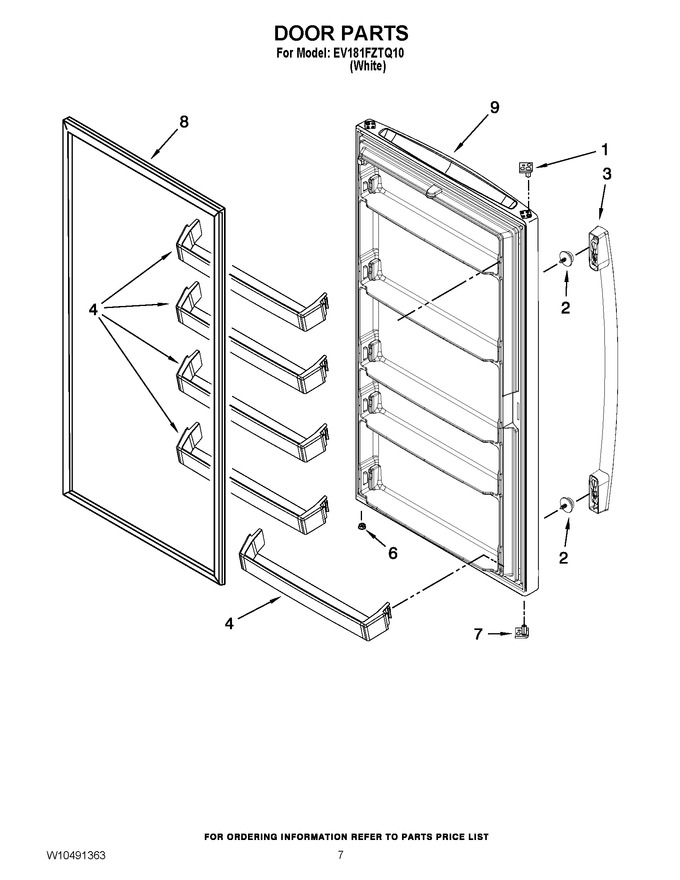

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2-81124-001 | Stop, Door |
|
$ 31.15 | |||||
| 2 | WPW10288153 | Screw, Handle (Replaces: W10288153) |
|
Immediately | $ 7.82 | ||||
| 3 | WPW10127761K | Handle Assembly (Replaces: W10127761) |
|
$ 168.00 | |||||
| 4 | WP4-65450-001 | Rail, Door Shelf (Replaces: 4-65450-001) |
|
$ 73.45 | |||||
| 6 | 3-24898-007 | Vent |
|
$ 9.72 | |||||
| 7 | 2-81125-001 | Stop-door |
|
- | |||||
| 8 | WP4-65151-002 | Gasket, Door (Replaces: 4-65151-002) |
|
$ 323.25 | |||||
| 9 | 4-82827-075 | Door Assembly (includes Interior Door Liner) |
|
- | |||||
| 10 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 79.87 |
