SELECT A DIAGRAM

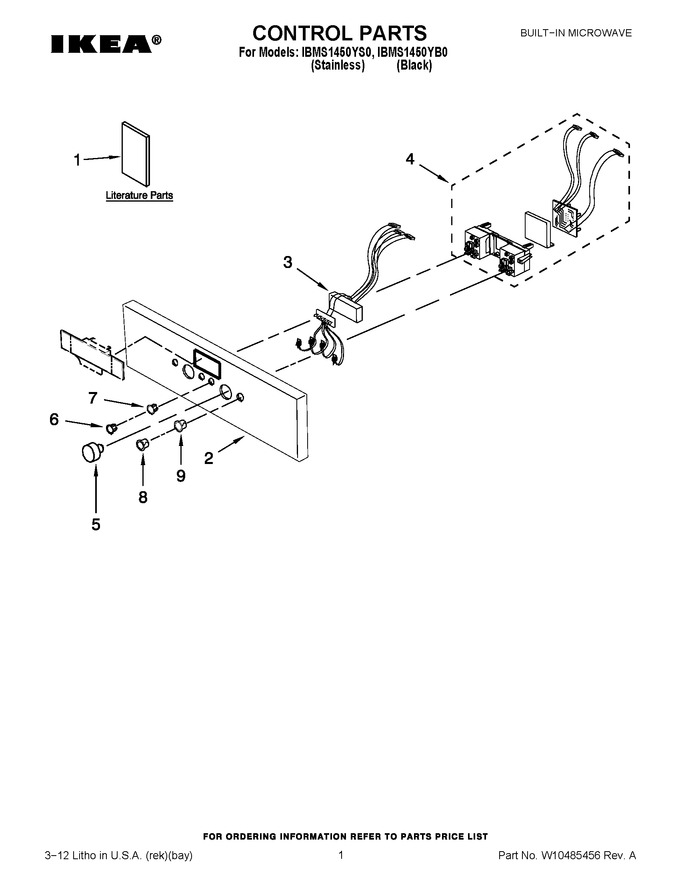

01 - Control Parts
02 - Cabinet Parts
03 - Door Parts
04 - Top Venting Parts
05 - Oven Interior Parts
06 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10419777 | Installation Instructions |
|
- | |||||
| 1 | W10419776 | Use & Care Guide |
|
- | |||||
| 1 | W10197622 | Cook Guide Label |
|
- | |||||
| 1 | W10419778 | Guide-quick Reference |
|
- | |||||
| 1 | W10197623 | Tech Sheet |
|
- | |||||
| 2 | W10485227 | Panel, Control (stainless) |
|
$ 111.25 | |||||
| 2 | W10485208 | Panel, Control (black) |
|
- | |||||
| 3 | W10485320 | Board, Display |
|
$ 103.85 | |||||
| 4 | W10217469 | Control, Unit |
|
- | |||||
| 5 | 8186915 | Knob |
|
$ 40.64 | |||||
| 6 | W10217551 | Button |
|
$ 9.27 | |||||
| 7 | W10217553 | Holder, Button |
|
$ 8.67 | |||||
| 8 | W10217549 | Switch |
|
- | |||||
| 9 | W10217550 | Housing, Switch |
|
$ 10.93 |
