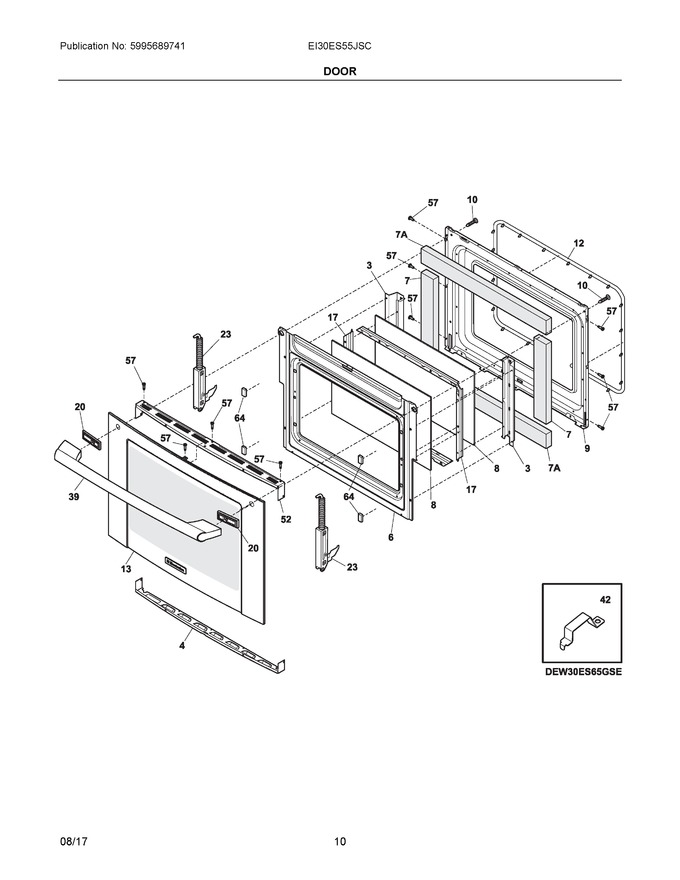

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318902200		Bracket, Insulation, (2)				$ 17.75
4	318904905		Trim, Door, Lower				$ 40.06
6	318904202		Deflector, Door				$ 35.86
7	318372017		Insulation, 13.25 X 2.375, 1" Thick, (2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass, Oven Door, Heat Barrier   (Replaces: 316117500)				$ 116.95
9	318904019		Liner, Door				$ 112.30
10	732022890		Screw, 10-24 X 0.625   (Replaces: 5303324305)			Immediately	$ 1.84
12	318053132		Gasket, Oven Door Seal   (Replaces: 318053131)			Immediately	$ 159.56
13	318261399		Glass Assy., Door, Black/stainless, Outer, W/trim & Badge				$ 668.98
17	318264733		Spacer, Glass, (2)   (Replaces: 318264711)				$ 72.05
20	318902902		Spacer, Handle, Grey, (2)				$ 53.76
23	318586000		Hinge, Oven Door				$ 175.67
39	241881302		Handle, Door, Stainless				$ 226.24
42	318382302		Bracket, Glass Retainer, (4)   (Replaces: 318382301)				$ 50.81
52	318904703		Trim, Door, Black, Upper				$ 57.28
57	5304436875		Screw, 8-18 X 1/2, Black, (3)				$ 14.41
64	5304455945		Spacer, Pad		Appelez-nous	-
7A	318372016		Insulation, 24 X 2.375, 1" Thick, (2)   (Replaces: 318372002)				$ 17.72
NI	5304476599		Screw, 8-18 X 3/8				$ 3.36
NI	316221001		Label, Anti-tip		Appelez-nous	-
NI	318346060		Insulation, .125 Thick, 3.125 X 8, (2)		Appelez-nous	-
NI	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
NIA	5304481623		Screw, #10-32x1/2				$ 9.61
