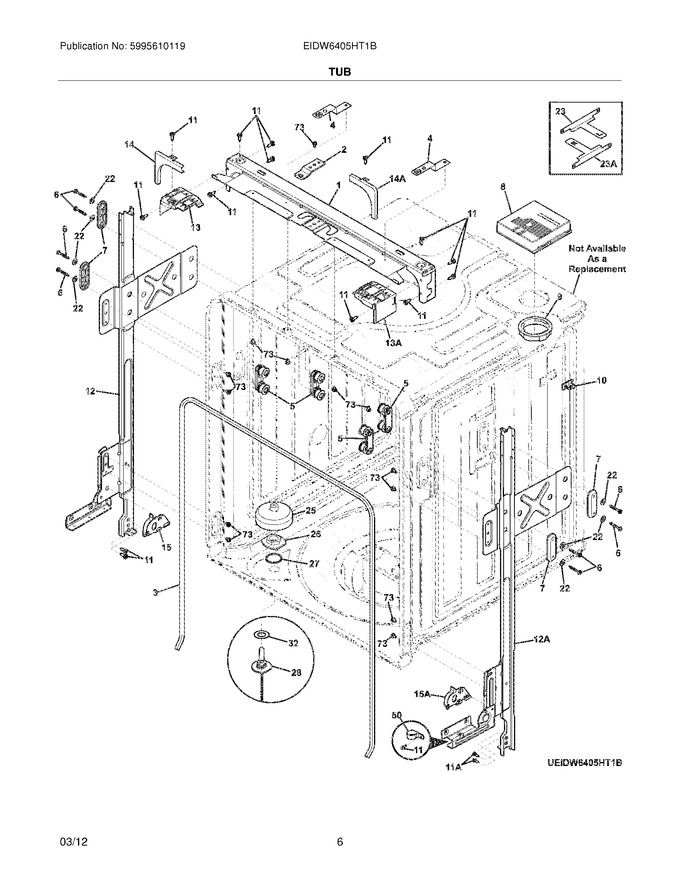

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154500701		Brace,frame ,top		Appelez-nous	-
2	154511401		Strike,door Latch				$ 42.79
3	154859301		Gasket,tub				$ 73.03
4	154657901		Clip,cabinet Mtg. ,top Mount ,(2)				$ 9.14
5	154510702		Roller Assembly,tub ,(4) ,w/gasket				$ 18.29
6	154719001		Screw,tub Roller ,(8)				$ 8.56
7	154510601		Plate,retainer ,outer ,(2) ,tub Roller				$ 7.56
9	154622601		Bezel,vent Assy ,upper				$ 22.84
10	154633501		Clip,wiring Harness		Appelez-nous	-
11	154518301		Screw,6 Lobe Recess ,no.8-18				$ 8.61
12	154774001		Leg And Hinge Assembly,left Hand ,front				$ 136.50
13	154654401		Bracket,cabinet Clip ,lh				$ 11.87
14	154502901		Trim,corner ,lh				$ 12.10
15	154656801		Cover,hinge Arm ,lh				$ 27.72
22	5300809968		Washer				$ 43.38
23	154654601		Clip,cabinet Mtg. ,lh				$ 51.03
26	154506902		Nut,float Switch				$ 15.18
27	154677201		Gasket,float Switch				$ 8.94
32	154506801		Washer,float Switch				$ 3.05
50	154690101		Clamp,wiring		Appelez-nous	-
73	154518401		Screw,6 Lobe Recess ,no.8-32				$ 10.24
11A	134154100		Screw-no.10-32 X 3/8   (Replaces: 154200701)				$ 13.46
12A	154774101		Leg And Hinge Assembly,right Hand ,front				$ 127.05
13A	154654501		Bracket,cabinet Clip ,rh				$ 11.55
14A	154502001		Trim,corner ,rh				$ 14.65
15A	154656901		Cover,hinge Arm ,rh				$ 30.29
23A	154654701		Clip,cabinet Mtg. ,rh				$ 49.40
F25	154764401		Float,flood ,w/magnet				$ 25.97
F28	154763901		Switch Assembly,reed ,float ,water Level				$ 49.16
F8	154773401		Vent Assembly,upper				$ 202.76
NI	154733101		Seal,tub Corner ,lh Lower				$ 23.63
NI	154657201		Screw,cabinet Clamp ,(2)				$ 9.66
NI	154623602		Insulation,blanket				$ 142.33
NI	154662101		Cabinet Seal Kit				$ 82.69
NI	154679701		Clip,insulation ,(2)				$ 6.93
NI	154733001		Seal,tub Corner ,rh Lower				$ 21.97
NI	154691601		Cover,connector ,vent Assy				$ 13.41
