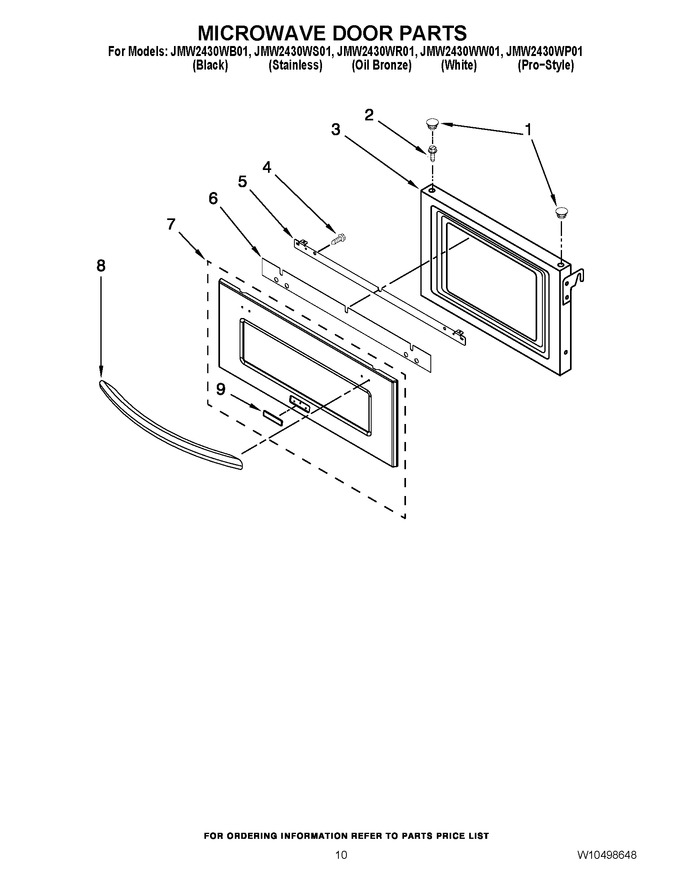

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756840 | Button, Plug (Replaces: 8304588BL) |
|
$ 10.58 | |||||
| 2 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 3 | W11684570 | Door, Microwave (Replaces: W10288012) |
|
Immediately | $ 508.92 | ||||
| 4 | W10267047 | Screw |
|
$ 11.55 | |||||
| 5 | W10176199 | Bracket, Handle |
|
$ 36.15 | |||||
| 5 | W10281176 | Pro-style Model |
|
$ 53.81 | |||||
| 6 | W10314607 | Foam, Bracket |
|
- | |||||
| 7 | WPW10176200 | Glass, Assembly (black) (Replaces: W10176200) |
|
$ 385.19 | |||||
| 7 | W10269422 | Glass, Assembly (oil Bronze) |
|
$ 297.12 | |||||
| 7 | W10269423 | Glass, Assembly (pro-style) |
|
- | |||||
| 7 | WPW10176202 | Glass, Assembly (white) (Replaces: W10176202) |
|
$ 270.67 | |||||
| 7 | W10269421 | Glass, Assembly (stainless) |
|
- | |||||
| 8 | W10186755 | Handle, Door (black) |
|
$ 240.68 | |||||
| 8 | W10186754 | Handle, Door (white) |
|
$ 257.76 | |||||
| 8 | W10186756 | Handle, Door (stainless) |
|
$ 139.42 | |||||
| 8 | W10186757 | Handle, Door (oil Bronze) |
|
$ 240.62 | |||||
| 8 | W10856834 | Handle, Door (pro-style) (Replaces: W10187014) |
|
$ 287.78 | |||||
| 9 | WPW10214168 | Badge (black) (Replaces: W10190724) |
|
$ 73.67 | |||||
| 9 | W10190723 | Badge (white) |
|
$ 95.96 | |||||
| 9 | WPW10214168 | Badge (stainless) (Replaces: W10214168) |
|
$ 73.67 | |||||
| 9 | W10214169 | Badge (oil Bronze) |
|
$ 45.79 | |||||
| 9 | WPW10159578 | Badge (pro-style) (Replaces: W10159578) |
|
Immediately | $ 75.89 |
