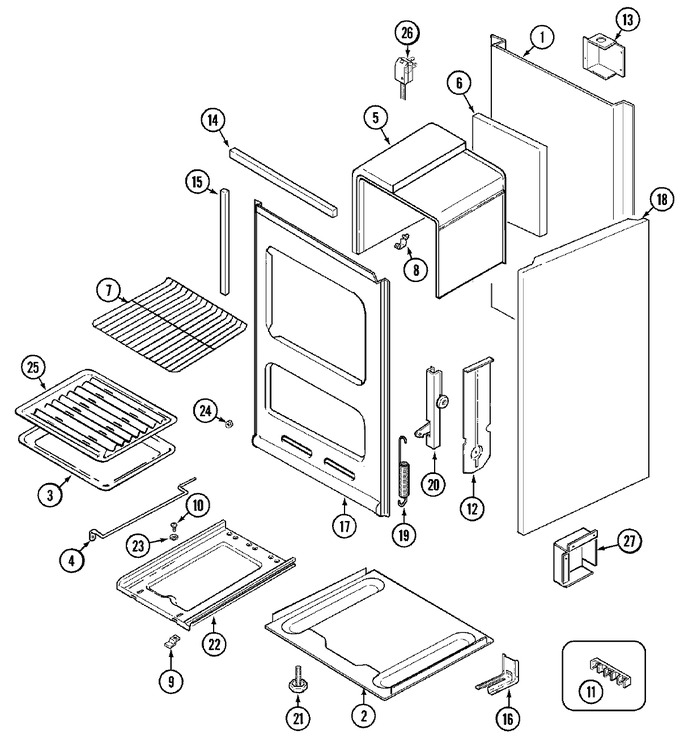

01 - Body/oven
02 - Door/drawer
03 - Gas Controls 1100prx
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F137-80 | Back, Main | 01 |
|
- | ||||
| 2 | 4003A014-80 | Base, Main | 01 |
|
- | ||||
| 5 | 7002P083-60 | Insulation, Oven Wrap | 01 |
|
- | ||||
| 6 | 7002P091-60 | Insulation, Oven Back | 01 |
|
- | ||||
| 7 | 7801P019-60 | Rack, Oven | 01 |
|
- | ||||
| 8 | 7112P053-60 | Clip, Capillary | 01 |
|
- | ||||
| 9 | 3819F011-61 | Clip, Oven Bottom Pl | 01 |
|
- | ||||
| 10 | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 4.29 | ||||
| 14 | 7212P014-60 | Seal, Door (top) | 01 |
|
$ 48.10 | ||||
| 15 | 7212P015-60 | Seal, Door (side) | 01 |
|
$ 45.93 | ||||
| 16 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 01 |
|
$ 26.33 | ||||
| 16 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 01 |
|
Immediately | $ 4.69 | |||
| 17 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 01 |
|
$ 6.77 | ||||
| 17 | M0282009 | Nut 10-24 (Replaces: 7103P071-60) | 01 |
|
$ 12.06 | ||||
| 17 | 2201W048-19 | Front, Main | 01 |
|
- | ||||
| 18 | 2618F070-74 | Panel, Side (alm) | 01 |
|
- | ||||
| 19 | 7803P032-60 | Spring, Oven Door | 01 |
|
$ 4.83 | ||||
| 20 | 3807F290-34 | Support, Hinge (lt) | 01 |
|
- | ||||
| 20 | 3807F291-34 | Support, Hinge (rt) | 01 |
|
- | ||||
| 20 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 01 |
|
$ 6.77 | ||||
| 20 | M0282009 | Nut (Replaces: 7103P064-60) | 01 |
|
$ 12.06 | ||||
| 21 | Y7101P25460 | Leg, Leveling | 01 |
|
- | ||||
| 21 | WP3400094 | Screw, W/washer (Replaces: 7101P188-60) | 01 |
|
$ 7.14 | ||||
| 22 | 5720A003-23 | Plate, Oven Bottom | 01 |
|
- | ||||
| 23 | 7109P015-60 | Washer | 01 |
|
- | ||||
| 24 | 7103P080-60 | Nut, Expansion | 01 |
|
- | ||||
| 25 | 3413F007-19 | Insert Pan | 01 |
|
- | ||||
| 26 | 4396923 | Pan, Broiler (Replaces: 3401F016-19) | 01 |
|
Immediately | $ 52.04 | |||
| 26 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 27 | 3808F007-61 | Rod, Broiler Runner (lt) | 01 |
|
- | ||||
| 27 | WP3400074 | Screw (Replaces: 7101P068-60) | 01 |
|
$ 6.47 | ||||
| 27 | 3808F008-61 | Rod, Broiler Runner (rt) | 01 |
|
- | ||||
| 28 | 7401P015-60 | Block, Terminal | 01 |
|
- | ||||
| 29 | 3818F034-51 | Channel Air Side | 01 |
|
- |
